NI USB-6356 OEM

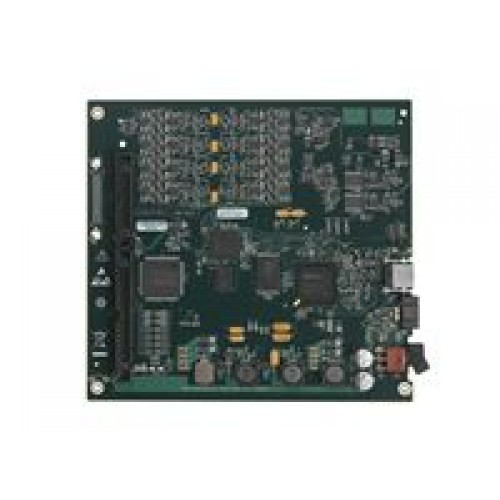

The NI USB-6356 OEM is a board-only X Series USB multifunction DAQ device with eight simultaneous-sampling, 16-bit analog inputs rated up to 1.25 MS/s per channel. It also provides two analog outputs, 24 digital I/O lines and four 32-bit counters/timers.

ManufacturerNational Instruments

ModelUSB-6356 OEM

Part Number782260-01

Product TypeBoard-only multifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6356 OEM

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs8 differential, simultaneously sampled

Input performance16-bit; up to 1.25 MS/s/ch

Analog outputs2 channels, 16-bit

Digital I/O24 bidirectional lines

Counters/timers4 × 32-bit

OEM signal connections34-pin analog and 50-pin digital connectors

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This OEM version brings the USB-6356 multifunction measurement architecture to a board-only format for integration into equipment. Simultaneous analog sampling is combined with analog output, digital I/O and counter/timer functions on one USB-connected device.

Integration uses separate analog and digital board connectors rather than the enclosed model's external termination arrangement. NI's OEM guide supplies connector pinouts, mechanical drawings and mounting information, and requires installation inside a suitable enclosure before use.

Simultaneous sampling across eight differential analog input channels.
Selectable analog input ranges of ±1 V, ±2 V, ±5 V and ±10 V.
NI-STC3 timing technology with independent analog and digital timing engines and retriggerable measurement tasks.
Counter/timer functions support PWM, encoder measurements, frequency measurements and event counting.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	8 differential, simultaneous sampling
Analog input resolution	16 bit
Maximum analog input sample rate	1.25 MS/s/ch
Analog output channels	2
Analog output resolution	16 bit
Digital I/O lines	24 bidirectional
Counters/timers	4, each 32-bit
Onboard acquisition memory	32 MS
PCB dimensions	175.3 × 162.6 mm
Weight	172 g
Signal connectors	34-pin analog; 50-pin digital
