NI (National Instruments) USB-6366 8 AI (16-Bit, 2 MS/s), 2 AO (3.33 MS/s), 24 DIO USB Multifunction I/O Device

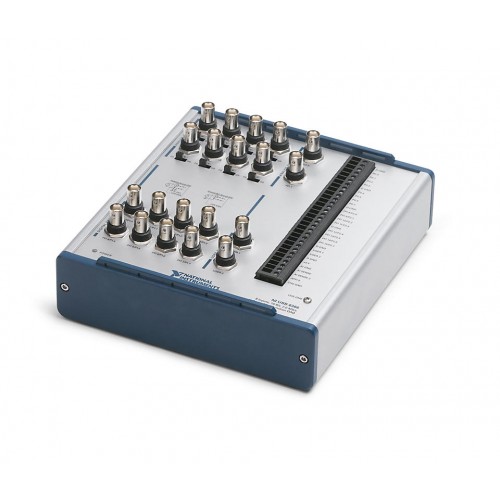

1 image: Click to enlarge
NI (National Instruments) · USB 2.0

USB-6366

The NI USB-6366 is a simultaneous-sampling USB multifunction DAQ device with eight 16-bit differential analog inputs at up to 2 MS/s/ch. It also provides two analog outputs, 24 bidirectional digital channels, and four counters/timers.

ManufacturerNI (National Instruments)
ModelUSB-6366
Part Number782262-01 · 782264-01
Product Type8 AI (16-Bit, 2 MS/s), 2 AO (3.33 MS/s), 24 DIO USB Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6366

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels24
Number of Counters/Timers4
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy2688 μV
Maximum Sample Rate2 MS/s/ch
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6366 combines simultaneous analog input acquisition with analog output, digital I/O, and counter/timer functions in a USB-connected device. Its eight differential analog inputs provide 16-bit resolution and a maximum sampling rate of 2 MS/s per channel.

Two 16-bit analog outputs complement 24 bidirectional digital channels and four counters/timers. The device uses a USB 2.0 connection, and NI-DAQmx provides driver and configuration support.

  • Eight differential analog input channels with simultaneous sampling at up to 2 MS/s/ch.
  • 16-bit resolution for both analog input and analog output.
  • Two analog output channels with a maximum update rate of 3.33 MS/s/ch.
  • 24 bidirectional digital channels with 5 V logic levels, plus four counters/timers.
  • Analog input ranges of ±1 V, ±2 V, ±5 V, and ±10 V; analog output ranges of ±5 V and ±10 V.
  • NI-DAQmx driver and configuration utility support device configuration and measurements.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels24
Number of Counters/Timers4
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy2688 μV
Maximum Sample Rate2 MS/s/ch
Simultaneous SamplingYes
Analog Input Resolution16 bits
Bus ConnectorUSB 2.0
Number of Analog Output Channels2
Maximum Analog Update Rate3.33 MS/s/ch
ReconfigurableNo
Number of Analog Input Channels8
Maximum Digital Update Rate100 ns
Operating Temperature Range0 °C to 45 °C
Bus ConnectionUSB 2.0
Digital I/O Logic Levels5 V
Maximum Clock Rate10 MHz
Number of External Clock Inputs8
Signaling TypeSingle-Ended
Analog Input Voltage Range-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Number of Voltage Output Channels2
Analog Output Voltage Range-10 V to 10 V, -5 V to 5 V
Analog Output Resolution16 bits
NI part numbers782262-01, 782264-01, 782263-01, 781445-02, 781445-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connector

USB-6366

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-6366 sample its analog inputs simultaneously?

Yes. Its eight differential analog input channels support simultaneous sampling at up to 2 MS/s per channel with 16-bit resolution.

Does the USB-6366 support single-ended analog inputs?

The existing verified specifications list eight differential analog input channels and zero single-ended analog input channels.

What analog output capability does the USB-6366 provide?

It provides two 16-bit analog output channels with a maximum update rate of 3.33 MS/s/ch and output ranges of ±5 V and ±10 V.

How many digital channels and counters/timers are provided?

The USB-6366 has 24 bidirectional digital channels and four counters/timers.

What host interface does the USB-6366 use?

The USB-6366 uses USB 2.0.
