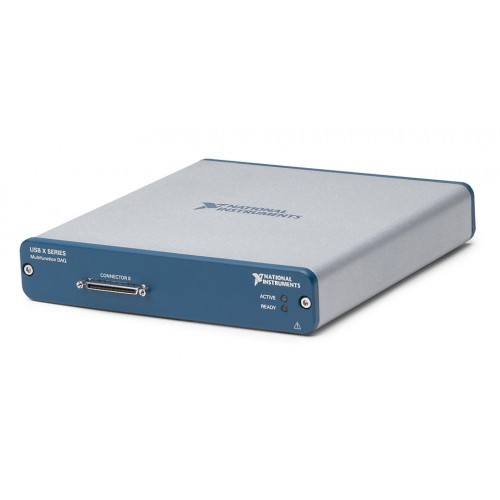

National Instruments USB-6361 Multifunction I/O device

1 image: Click to enlarge

National Instruments · USB DAQ

USB-6361

Name: USB-6361
Brand: National Instruments

The NI USB-6361 is an X Series USB data acquisition device combining analog input, analog output, digital I/O, and counter/timer functions.

ManufacturerNational Instruments

ModelUSB-6361

Part Number781442-01

Product TypeMultifunction I/O device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6361

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs16 single-ended or 8 differential

Input resolution16-bit

Maximum input sample rate2 MS/s

Analog outputs2

Digital I/O24 bidirectional lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6361 supports computer-based measurement and control through a USB 2.0 interface. Its analog inputs do not sample simultaneously.

Four 32-bit counters/timers support PWM, encoder measurements, frequency measurements, and event counting.
NI-STC3 technology provides independent analog and digital timing engines.
Supports retriggerable measurement tasks.

Verified specifications

Technical data

Verified product specifications.

Interface	USB 2.0
Maximum single-ended analog inputs	16 channels
Maximum differential analog inputs	8 channels
Analog input resolution	16 bits
Maximum analog input sample rate	2 MS/s
Simultaneous analog input sampling	No
Analog output channels	2 channels
Bidirectional digital I/O	24 lines
Counters/timers	4

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

X Series USB DAQ

Product family and host interface

USB-6361

Multifunction I/O device

Driver

NI-DAQmx

Confirm the device part number and termination style before selecting connection accessories.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-6361 product informationOfficial Product Page · ni.com

Open →

USB-6361 dimensional drawingsDimensional Drawings · ni.com

Open →

NI 63xx cable and accessory compatibility guideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-6361 sample all analog inputs simultaneously?

No. NI specifies that the USB-6361 does not provide simultaneous analog input sampling.

Which driver is used with the USB-6361?

The USB-6361 uses NI-DAQmx.
