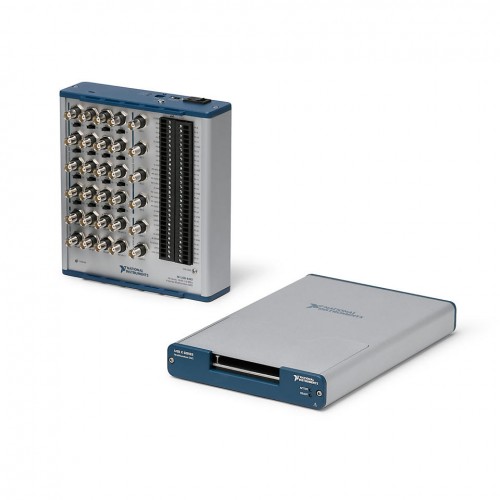

USB-6356

The NI USB-6356 is a simultaneous-sampling multifunction USB device with eight 16-bit analog inputs at up to 1.25 MS/s per channel. It also provides two analog outputs, 24 bidirectional digital I/O channels and four counters/timers.

ManufacturerNI (National Instruments)

ModelUSB-6356

Part Number781444-01 · 781444-02

Product Type8 AI (16-Bit, 1.25 MS/s), 2 AO (3.33 MS/s), 24 DIO USB Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6356

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels24

Number of Counters/Timers4

Max Differential Analog Input Channels8

Analog Input Absolute Accuracy2688 μV

Maximum Sample Rate1.25 MS/s/ch

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6356 combines analog acquisition, analog output, digital I/O and counter/timer functions in a USB-connected device. Its eight differential analog inputs support simultaneous sampling at up to 1.25 MS/s per channel, with 16-bit resolution.

Selectable analog input ranges extend from ±1 V to ±10 V. Two 16-bit analog output channels offer ±5 V and ±10 V ranges, while 24 bidirectional digital channels and four 32-bit counters/timers provide additional signal-generation and measurement functions.

Eight differential analog inputs with simultaneous sampling and 16-bit resolution.
Selectable analog input ranges of ±1 V, ±2 V, ±5 V and ±10 V.
Two 16-bit analog outputs with ±5 V and ±10 V output ranges.
24 bidirectional digital I/O channels with single-ended signaling and a maximum clock rate of 10 MHz.
Four 32-bit counters/timers support PWM, encoder, frequency and event-counting functions.
NI-DAQmx driver and configuration utilities support device configuration and measurements.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	24
Number of Counters/Timers	4
Maximum Number of Differential Analog Input Channels	8
Analog Input Absolute Accuracy	2688 μV
Maximum Sample Rate	1.25 MS/s/ch
Simultaneous Sampling	Yes
Analog Input Resolution	16 bits
Bus Connector	USB 2.0
Number of Analog Output Channels	2
Maximum Analog Update Rate	3.33 MS/s/ch
Reconfigurable	No
Number of Analog Input Channels	8
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 50 °C
Bus Connection	USB 2.0
Digital I/O Logic Levels	5 V
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Number of Voltage Output Channels	2
Analog Output Voltage Range	-10 V to 10 V, -5 V to 5 V
Analog Output Resolution	16 bits
NI part numbers	781444-01, 781444-02, 782261-01, 782260-01
