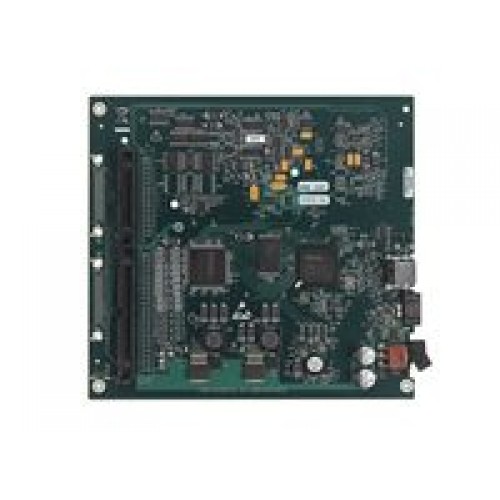

National Instruments USB-6341 OEM OEM multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

NI USB-6341 OEM

The NI USB-6341 OEM is a board-level X Series USB data acquisition device combining analog I/O, digital I/O, and counters/timers for equipment integration.

ManufacturerNational Instruments
ModelUSB-6341 OEM
Part Number782250-01
Product TypeOEM multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6341 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential; 16-bit
Input throughput500 kS/s maximum aggregate
Analog outputs2 channels; 16-bit; up to 900 kS/s
Digital I/O24 bidirectional lines
OEM connections34-pin analog and 50-pin digital connectors
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This OEM version uses an unenclosed PCB and generic signal connectors rather than the enclosed USB-6341 termination options. NI identifies the OEM configuration as part number 782250-01.

The OEM user guide provides connector pinouts, PCB dimensions, mounting information, and component details for mechanical and electrical integration.

  • Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V, and ±10 V.
  • Two voltage outputs with a ±10 V range.
  • Four 32-bit counters/timers support counting and timing tasks.
  • NI-STC3 technology provides independent analog and digital timing engines and retriggerable measurement tasks.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration16 single-ended or 8 differential channels
Analog input resolution16 bits
Maximum aggregate analog input rate500 kS/s
Simultaneous analog input samplingNo
Analog outputs2 channels, 16-bit resolution, ±10 V range
Maximum analog output update rate900 kS/s
Digital I/O lines24 lines
Counters/timers4 × 32-bit
PCB dimensions175.3 × 162.6 mm
Weight156 g
