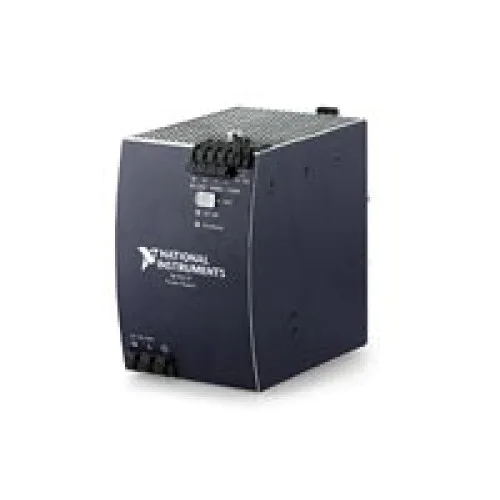

National Instruments PS-17 DIN-rail industrial DC power supply
1 image: Click to enlarge
National Instruments · External power accessory for NI measurement and control systems

NI PS-17 Power Supply

The NI PS-17 is a DIN-rail industrial power supply rated at 24 VDC, 20 A and 480 W. It provides external DC power for supported NI measurement and control equipment.

ManufacturerNational Instruments
ModelPS-17
Part Number781095-01
Product TypeDIN-rail industrial DC power supply
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PS-17

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Rated output24 VDC, 20 A
Output power480 W
InstallationDIN-rail mounting
Part number781095-01
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PS-17 supplies industrial DC power to supported CompactDAQ and CompactRIO systems, CompactRIO Single-Board Controllers, Smart Cameras, touch panel computers and DC motor drives.

NI documents the PS-17 as a power accessory for the cRIO-9066, alongside lower-current PS-15 and PS-16 supplies. Selection should follow the connected equipment's power requirements rather than model-family similarity alone.

  • Accepts nominal 100–240 VAC input or 110–150 VDC input.
  • Supports 150% peak load for up to four seconds.
  • Uses toolless spring-clamp terminals for field wiring.
Verified specifications

Technical data

Verified product specifications.

Rated output voltage24 VDC
Rated output current20 A
Rated output power480 W
Nominal AC input voltage100–240 VAC
Nominal AC input frequency50–60 Hz
DC input voltage110–150 VDC
Peak load capability150% for up to four seconds
MountingDIN rail
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Industrial power supplies

External DC power accessory category

PS-17

24 VDC, 20 A power supply

CompactDAQ integration

NI lists the PS-17 for cDAQ-9132 through cDAQ-9139 controllers and selected externally powered cDAQ chassis.

Confirm the exact load model, power connector and installation requirements; do not assume support for every CompactDAQ or CompactRIO device.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PS-17 Official Product PageProduct Page · ni.com
Open →
NI PS-14/15/16/17 User Manual and Specifications — SpanishUser Manual And Specifications · download.ni.com
Open →
PS-17 Product CertificationsCertification Directory · ni.com
Open →
CompactDAQ External Power Supplies Compatibility GuideTechnical resource
Open →
NI cRIO-9066 User ManualTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PS-15View product →
Related model
PS-16View product →

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PS-17 a desktop laboratory power supply?

NI identifies the PS-17 as a DIN-mountable industrial power supply, not a desktop bench instrument.

Can the PS-17 power a cRIO-9066?

Yes. NI's cRIO-9066 user manual lists the PS-17, part 781095-01, among its power supply accessories.

Does the PS-17 support every CompactDAQ chassis?

No. NI's compatibility table lists supported models individually and marks the cDAQ-9171 as not applicable for the PS-17 power-supply category.
