National Instruments PS-15 Industrial DC power supply

1 image: Click to enlarge

National Instruments · External power accessory for NI systems

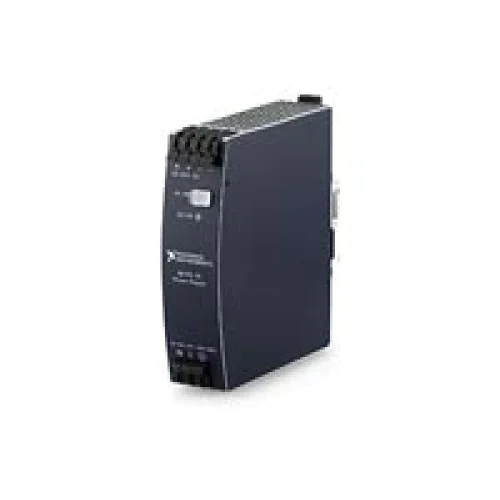

NI PS-15 Power Supply

The NI PS-15 is a DIN-rail industrial power supply with 24–28 VDC output, a 5 A rating and 120 W output power. It provides external power for supported NI measurement and control systems.

ManufacturerNational Instruments

ModelPS-15

Part Number781093-01

Product TypeIndustrial DC power supply

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PS-15

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Output voltage24–28 VDC

Rated output current5 A

Output power120 W

MountingDIN rail

ConnectionsToolless spring-clamp terminals

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PS-15 supplies DC power to supported CompactDAQ and CompactRIO equipment and other NI devices. Its DIN-rail mounting and spring-clamp wiring suit installation alongside industrial measurement and control hardware.

NI provides a dedicated installation and specifications manual covering mounting orientation, terminal wiring, cooling and operating conditions. Consult that manual when sizing the supply and planning enclosure installation.

Output voltage adjustable from 24 to 28 VDC.
DIN-rail mounting for industrial installation.
Spring-clamp terminals for field wiring.
Output-voltage potentiometer and DC OK LED indicator.

Verified specifications

Technical data

Verified product specifications.

Output voltage range	24–28 VDC
Rated output current	5 A
Rated output power	120 W
Nominal AC input ranges	100–120 / 200–240 VAC
Operating temperature range	-25 to +60; consult manual for load and installation restrictions °C
Mounting type	DIN rail
Terminal type	Spring clamp

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Supported system families with model-specific power requirements

PS-15

External industrial DC power supply

Installation guidance

The user manual covers mounting, terminal wiring, cooling and enclosure operation.

Check the exact device's power requirements and NI accessory table; system-family membership alone does not establish compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PS-15 Power Supply User Manual and SpecificationsUser Manual And Specifications · ni.com

Open →

NI PS-15 Product PageOfficial Product Page · ni.com

Open →

PS-15 Product CertificationsCertification Index · ni.com

Open →

CompactDAQ External Power Supplies Compatibility GuideTechnical resource

Open →

CompactRIO Power Supply Accessories GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What output does the NI PS-15 provide?

NI identifies the PS-15 as a 24–28 VDC industrial supply rated at 5 A and 120 W. Consult the manual for operating limits when adjusting voltage or sizing the load.

Is the PS-15 a desktop laboratory power supply?

NI classifies it as a DIN-mountable industrial power supply. Its manual describes an output-voltage potentiometer and DC OK LED, rather than a laboratory-style numerical display.

How do I check compatibility with my NI system?

Use NI's CompactDAQ or CompactRIO power-supply accessory guide for the exact controller or chassis model, then check its voltage, current and wiring requirements.
