National Instruments PS-16 Industrial AC-to-DC power supply

1 image: Click to enlarge

National Instruments · External power accessory for supported NI systems

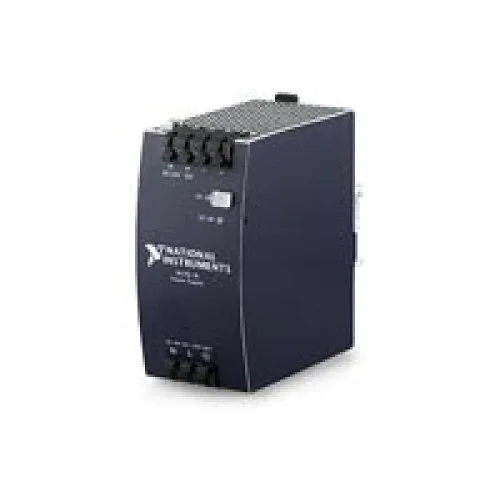

NI PS-16 Power Supply

The NI PS-16 is a DIN-rail industrial power supply rated at 24–28 VDC, 10 A and 240 W. NI identifies it as an external power source for supported CompactDAQ, CompactRIO and other NI systems.

ManufacturerNational Instruments

ModelPS-16

Part Number781094-01

Product TypeIndustrial AC-to-DC power supply

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PS-16

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Output voltage24–28 VDC

Rated output current10 A

Rated output power240 W

MountingDIN rail

ConnectionsToolless spring-clamp terminals

NI part number781094-01

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PS-16 supplies DC power to supported NI measurement and control equipment. Its DIN-rail mounting and spring-clamp connections distinguish it from a desktop laboratory power supply.

NI lists the PS-16 in its CompactDAQ and CompactRIO power-accessory tables. Select the supply and connection accessories against the specific controller or chassis requirements rather than assuming that every device in either platform uses the same power connection.

24–28 VDC output range with a 10 A rating.
DIN-rail mounting for industrial installation.
Toolless spring-clamp terminals for field wiring.
20% power reserve for fluctuating loads; NI permits continuous use of the additional current below 45 °C ambient.
Model-specific side-mount and shared panel-mount accessories are listed by NI.

Verified specifications

Technical data

Verified product specifications.

Output voltage range	24–28 VDC
Rated output current	10 A
Rated output power	240 W
AC input designation	100–120 / 200–240 VAC
Operating temperature range	-25 to +60 °C
Power reserve	20; additional current usable continuously below 45 °C ambient %
Mounting	DIN rail

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO power accessories

Supported external power ecosystem

PS-16

DIN-rail AC-to-DC power supply

Panel mounting kit

NI part number 199432-01

Confirm the target device's voltage, current and connector requirements, and consult installation instructions before wiring AC input.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PS-16 Official Product PageProduct Page · ni.com

Open →

CompactDAQ External Power SuppliesAccessory Compatibility Guide · ni.com

Open →

CompactRIO Power Supply AccessoriesAccessory Compatibility Guide · ni.com

Open →

NI 9503 C Series Stepper Drive Modules and SoftMotion Module Getting StartedTechnical resource

Open →

Archived: Regeneration Considerations Using the NI C Series Drive ModulesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the NI PS-16 a desktop bench power supply?

NI classifies the PS-16 as a DIN-mountable industrial power supply. It is not the desktop supply described in the legacy catalog text.

What output ratings identify the PS-16?

NI specifies a 24–28 VDC output range, 10 A rated current and 240 W rated output power.

Can the PS-16 power the NI 9503 stepper drive module?

Yes. NI's NI 9503 getting-started guide recommends the PS-16 for the module's motor bus power. Follow the drive documentation and regeneration guidance for the complete installation.
