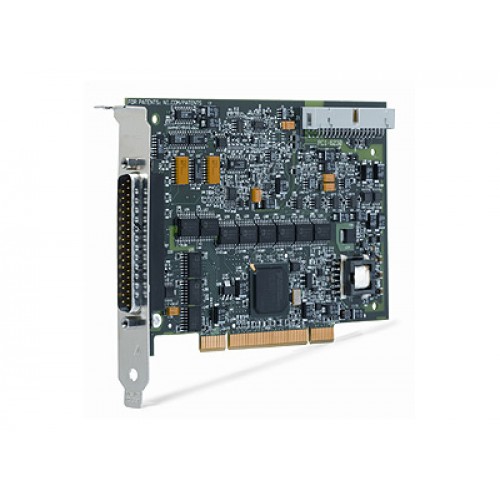

NI PCI-6236

The NI PCI-6236 is a bank-isolated PCI multifunction DAQ device with four differential ±20 mA current inputs and four ±10 V voltage outputs. It also provides six digital inputs, four digital outputs and two 32-bit counters/timers.

ManufacturerNational Instruments

ModelPCI-6236

Part Number779621-01

Product TypeBank-isolated multifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6236

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs4 differential current inputs, ±20 mA

Input performance16-bit resolution; maximum 250 kS/s

Analog outputs4 voltage outputs, ±10 V

Digital channels6 inputs and 4 outputs

IsolationBank isolation

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6236 combines current acquisition, voltage generation and digital timing functions on a PCI board. Its analog inputs are not simultaneously sampled.

NI identifies this device as part of the M Series DAQ family. Its external signals connect through a 37-pin D-SUB connector.

Differential current measurement with bank isolation.
Four voltage-output channels with 16-bit DAC resolution.
Fixed-direction digital lines also serve as PFI timing inputs and outputs.
NI-DAQmx driver and configuration utility support device configuration and measurements.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	4 differential current inputs
Analog input range	±20 mA
ADC resolution	16 bits
Maximum analog input sample rate	250 kS/s
Analog output channels	4 voltage outputs
Analog output range	±10 V
Maximum analog output update rate	500 (1 channel); 450 (2 channels); 425 (3 channels); 400 (4 channels), per channel kS/s
Digital I/O	6 inputs; 4 outputs; fixed direction
Counters/timers	2, each 32-bit
I/O connector	37-pin D-SUB
