Home / Shop / NI PCI-6238

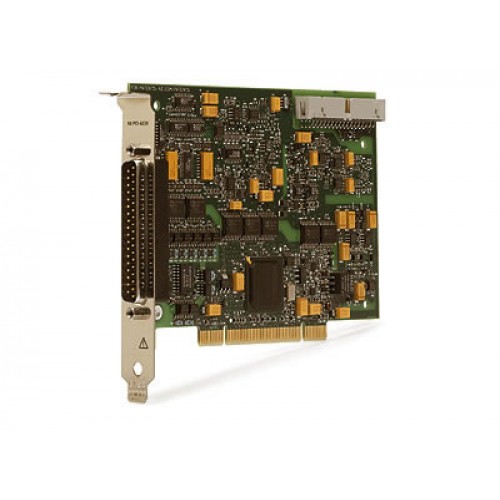

National Instruments PCI-6238 product image 1
National Instruments PCI-6238 product image 1 additional viewNational Instruments PCI-6238 product image 1 additional view
3 images: additional views below.Click to enlarge
National Instruments · PCI

NI PCI-6238

The NI PCI-6238 is a bank-isolated PCI multifunction DAQ card with eight ±20 mA analog inputs, 16-bit resolution and a maximum sampling rate of 250 kS/s. It also provides two current outputs, digital I/O and two 32-bit counters/timers.

ManufacturerNational Instruments
ModelPCI-6238
Part Number779623-01
Product TypeIsolated multifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6238

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformPCI multifunction DAQ
Analog inputs8 differential current inputs, ±20 mA
Input performance16-bit resolution; up to 250 kS/s
Analog outputs2 current outputs
Digital I/O6 inputs and 4 sourcing outputs
Counters/timers2 × 32-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6238 combines current-signal acquisition, analog output and digital timing functions on a PCI card. NI identifies it as an M Series device with bank isolation.

NI documents NI-DAQmx support for configuration and measurement. Its analog inputs are not simultaneously sampled; account for this when planning multichannel measurements.

  • Bank-isolated analog and digital I/O.
  • Current acquisition through eight differential analog inputs.
  • Two analog current-output channels.
  • Dedicated digital input and sourcing-output lines.
  • Two 32-bit counters/timers for timing and counting tasks.
Verified specifications

Technical data

Verified product specifications.

Bus interfacePCI
Analog input channels8 differential current inputs
Analog input range±20 mA
Analog input resolution16 bits
Maximum analog input sample rate250 kS/s
Simultaneous samplingNo
Analog outputs2 current outputs, 16-bit
Analog output range0 to 20 mA
Maximum analog output update rate500 for one channel; 450 per channel for two channels kS/s
Digital I/O6 inputs; 4 sourcing outputs
Counters/timers2, each 32-bit
I/O connector37-pin D-SUB
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI / M Series

Host interface and DAQ family

PCI-6238

Isolated current-input/output multifunction DAQ card

Driver

NI-DAQmx

Check the PCI-6238 pinout and NI accessory guide before selecting signal connections.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6238 Product PageProduct Page · ni.com
Open →
NI 6238 Device SpecificationsSpecifications And Pinout · download.ni.com
Open →
62xx Models: DAQ Multifunction I/O Cable and Accessory CompatibilityAccessory Compatibility Guide · ni.com
Open →
PCI-6238 Electrical Specifications and Connector PinoutTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PCI-6239View product →
Related model
PCI-6236View product →

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PCI-6238 measure current or voltage?

Its eight differential analog inputs measure current over a ±20 mA range.

Are the analog inputs sampled simultaneously?

No. NI lists the PCI-6238 as a non-simultaneous-sampling device with a maximum sample rate of 250 kS/s.

Do the analog outputs require external power?

Yes. NI specifies an external 10 to 30 VDC supply for the analog current outputs.
