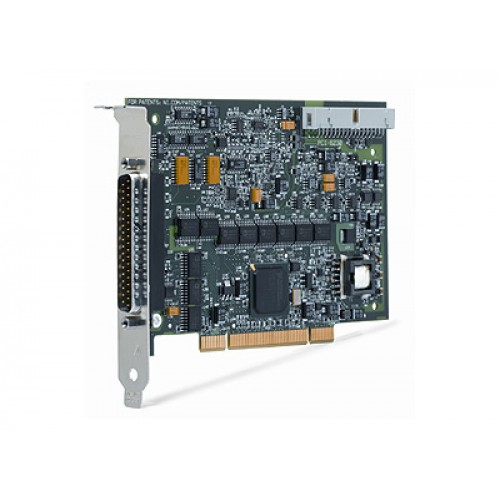

NI PCI-6230
1 image: Click to enlarge
National Instruments · PCI

NI PCI-6230

The NI PCI-6230 is a bank-isolated M Series PCI data acquisition card combining voltage inputs and outputs, fixed-direction digital I/O, and two 32-bit counters/timers.

ManufacturerNational Instruments
ModelPCI-6230
Part Number779615-01
Product TypeBank-isolated multifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6230

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs8 single-ended or 4 differential
Input performance16-bit; maximum single-channel rate 250 kS/s
Analog outputs4 voltage outputs
Digital I/O6 inputs and 4 outputs
Counters/timers2 × 32-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6230 brings analog acquisition, analog generation, digital signaling, and counter/timer functions to a PCI-based measurement system. NI identifies the device as part of its M Series multifunction DAQ family.

Its signal connection uses a 37-pin D-SUB connector. NI places the PCI-6230 in the isolated-device accessory group requiring a higher-rated cable to meet device specifications.

  • Selectable voltage input ranges of ±0.2 V, ±1 V, ±5 V, and ±10 V.
  • Four 16-bit analog outputs with a ±10 V output range.
  • Bank isolation and 5 V TTL/CMOS digital signaling.
  • NI-DAQmx driver support for device configuration and measurements.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration8 single-ended or 4 differential voltage inputs
Analog input resolution16 bit
Maximum single-channel input sample rate250 kS/s
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output configuration4 voltage channels; 16-bit; ±10 V
Maximum analog output update rate1 channel: 500; 2 channels: 450 per channel; 3 channels: 425 per channel; 4 channels: 400 per channel kS/s
Digital channels6 fixed inputs; 4 fixed outputs
Counters/timers2, 32-bit
I/O connector37-pin D-SUB
PCI signaling environment3.3 or 5 V
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series PCI

DAQ family and host interface

PCI-6230

Bank-isolated multifunction DAQ card

Driver

NI-DAQmx; verify the selected release against the host operating system.

Select cabling from NI's PCI-6230 accessory group; connector fit alone does not establish the required isolation rating.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6230 Product PageProduct Page · ni.com
Open →
NI 6230 Device Specifications, Revision ESpecifications · download.ni.com
Open →
PCI-6230 Dimensional DrawingsDimensional Drawings · ni.com
Open →
NI 62xx Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PCI-6232View product →
Related model
PCI-6236View product →

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PCI-6230 provide analog outputs?

Yes. It has four 16-bit voltage outputs with a ±10 V range.

Are the digital lines bidirectional?

No. The six input lines and four output lines have fixed directions.

Can any 37-pin D-SUB cable be used?

NI specifies a higher-rated cable for the PCI-6230 to meet its specifications. Use the model-specific accessory compatibility guide rather than selecting solely by connector type.
