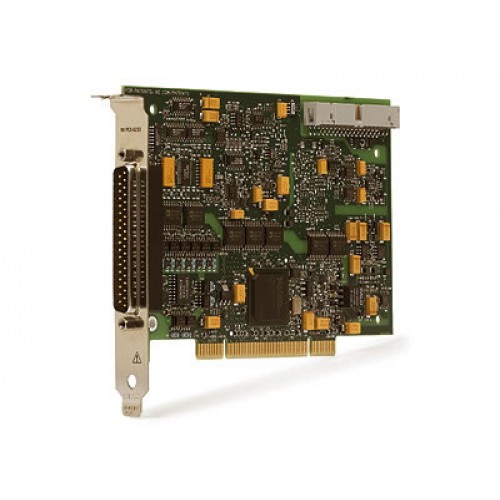

The NI PCI-6232 is an isolated M Series PCI data acquisition card with 16-bit voltage inputs and a maximum aggregate sampling rate of 250 kS/s.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-6232 combines voltage acquisition, analog output, digital I/O, and counter/timer functions on a PCI card. Its bank-isolated architecture separates signal groups rather than providing independent isolation for every analog channel.
Analog input bandwidth is shared across the acquisition scan: the 250 kS/s rating is aggregate, not a per-channel rate. The NI 6232/6233 User Manual explains channel timing, signal connections, triggering, and synchronization.
Verified product specifications.
| Analog input channels | 16 single-ended or 8 differential |
|---|---|
| ADC resolution | 16 bits |
| Maximum aggregate AI sampling rate | 250 kS/s |
| Analog input ranges | ±0.2, ±1, ±5, ±10 V |
| Analog outputs | 2 channels, 16-bit, ±10 V |
| Maximum AO update rate | 500 kS/s with one channel; 450 kS/s per channel with two |
| Digital I/O | 6 fixed inputs; 4 fixed sourcing outputs |
| Counters/timers | 2, each 32-bit |
| I/O connector | 37-pin D-SUB |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
DAQ family and host interface
Isolated multifunction DAQ card
NI-DAQmx 8.6 explicitly lists PCI-6232 support; verify the intended driver release and operating system separately.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The NI-DAQmx 8.6 readme lists the PCI-6232. This historical listing does not establish compatibility with every later driver or operating system.
