NI PCI-6025E (Legacy)

Name: NI PCI-6025E (Legacy)
Brand: National Instruments

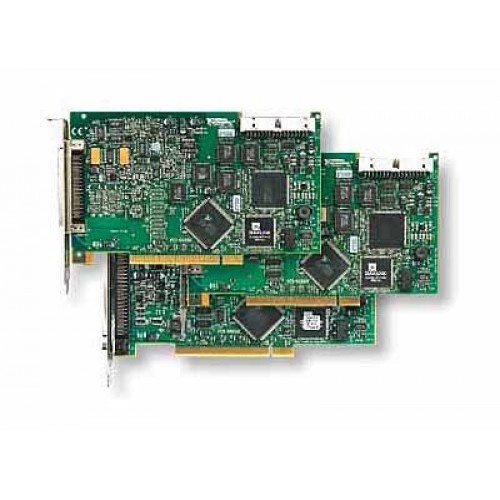

The NI PCI-6025E is a PCI multifunction data acquisition card with 16 analog inputs, two analog outputs, 32 digital I/O lines, and two 24-bit counters.

ManufacturerNational Instruments

ModelPCI-6025E

Part Number777744-01 · 185484-01

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6025E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog input configuration16 single-ended or 8 differential channels

Input conversion12-bit; maximum sampling rate 200 kS/s

Analog outputs2 voltage channels

Digital I/O32 lines

Counters2 × 24-bit

I/O connector100-pin female 0.05D type

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6025E combines analog acquisition, voltage output, digital I/O, and counter functions in a PCI device. NI identifies laboratory automation, research, design verification, and manufacturing test as product applications.

Within the 6023E/6024E/6025E family, the 6025E provides 32 digital I/O lines rather than the eight lines on the 6023E and 6024E. Its 100-pin I/O connector also differs from their 68-pin connectors, making cable and terminal-accessory selection important.

Software-selectable single-ended or differential analog input configuration.
Two 12-bit analog voltage outputs.
TTL/CMOS-compatible digital I/O.
Two 24-bit counters complement analog and digital I/O functions.

Verified specifications

Technical data

Verified product specifications.

Host interface	PCI
Analog input channels	16 single-ended or 8 differential
ADC resolution	12 bit
Maximum analog input sampling rate	200 kS/s
Analog input ranges	±10 V, ±5 V, ±500 mV, ±50 mV
Analog input FIFO	512 samples
Analog output channels	2
DAC resolution	12 bit
Analog output range	±10 V
Digital I/O lines	32
Counter configuration	2 counters, 24-bit resolution
I/O connector	100-pin female 0.05D type

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-6025E

Multifunction I/O card

Historical driver support

NI-DAQmx 8.3 lists the PCI-6025E as a supported device.

Validate the host PCI slot, 100-pin cabling, and driver/operating-system combination before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6025E Product PageProduct Page · ni.com

Open →

NI 6023E/6024E/6025E Family SpecificationsSpecifications · download.ni.com

Open →

6023E/6024E/6025E User ManualUser Manual · download.ni.com

Open →

NI-DAQmx 8.3 Readme and Supported DevicesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many differential analog inputs does the PCI-6025E provide?

It supports eight differential inputs or 16 single-ended inputs, with software-selectable channel configuration.

Does the PCI-6025E use the same connector as the PCI-6024E?

No. The PCI-6025E uses a 100-pin female 0.05D connector; the PCI-6024E uses a 68-pin male SCSI-II-type connector.

Is NI-DAQmx support documented for this card?

Yes. The NI-DAQmx 8.3 readme explicitly lists the PCI-6025E. This historical listing does not establish compatibility with current driver releases or operating systems.
