NI PCI-6024E (Legacy)

Name: NI PCI-6024E (Legacy)
Brand: National Instruments

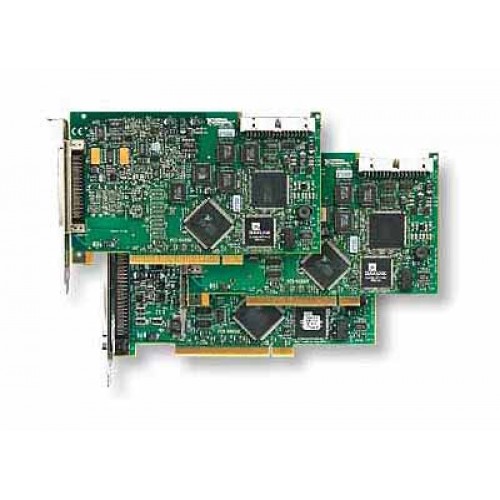

The NI PCI-6024E is a PCI multifunction DAQ card with 16 analog inputs, 12-bit input resolution, and a 200 kS/s sampling rate. It also provides two analog outputs, eight digital I/O lines, and two 24-bit counters.

ManufacturerNational Instruments

ModelPCI-6024E

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6024E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCI

Analog inputs16 single-ended or 8 differential

Input conversion12-bit, 200 kS/s

Analog outputs2 channels

Digital I/O8 lines

Counters2 counters, 24-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6024E belongs to NI's E Series DAQ family and combines analog acquisition, analog output, digital I/O, and counter functions on a PCI card.

Software-selectable input configurations accommodate single-ended or differential voltage measurements. The user manual covers signal connections, input modes, timing, and electrical specifications for integration into a measurement system.

Selectable single-ended and differential analog input configurations.
Bipolar input ranges of ±10 V, ±5 V, ±500 mV, and ±50 mV.
Two analog output channels alongside eight digital I/O lines.
Two 24-bit counters for timing and counting functions.

Verified specifications

Technical data

Verified product specifications.

Bus interface	PCI
Analog input configuration	16 single-ended or 8 differential; software-selectable per channel
ADC resolution	12 bit
Analog input sampling rate	200 kS/s
Analog input ranges	±10 V; ±5 V; ±500 mV; ±50 mV
Input coupling	DC
Analog output channels	2 channels
Digital I/O lines	8 lines
Counter count	2 counters
Counter resolution	24 bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

E Series / PCI

DAQ family and host interface

PCI-6024E

Multifunction DAQ card

Historical driver support

NI-DAQmx 8.5 lists the PCI-6024E under devices supported by both NI-DAQmx and Traditional NI-DAQ.

Check the exact driver release, operating system, and host PCI slot requirements before integration; historical support does not establish current software compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6024E Official Product PageProduct Page · ni.com

Open →

6023E/6024E/6025E User Manual — December 2000User Manual · download.ni.com

Open →

NI-DAQmx 8.5 ReadmeHistorical Driver Support · download.ni.com

Open →

Signal Connections and Specifications — 6023E/6024E/6025E User ManualTechnical resource

Open →

NI-DAQmx 16.0 Supported HardwareTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many differential inputs does the PCI-6024E provide?

It supports eight differential inputs or 16 single-ended inputs, with input configuration selectable in software.

Does the PCI-6024E include analog outputs?

Yes. It includes two analog output channels, eight digital I/O lines, and two counters in addition to its analog inputs.

How does the PCI-6024E differ from the PCI-6023E and PCI-6025E?

The PCI-6023E has no analog outputs. The PCI-6024E and PCI-6025E each have two analog outputs, but provide eight and 32 digital I/O lines respectively.
