National Instruments · PCI

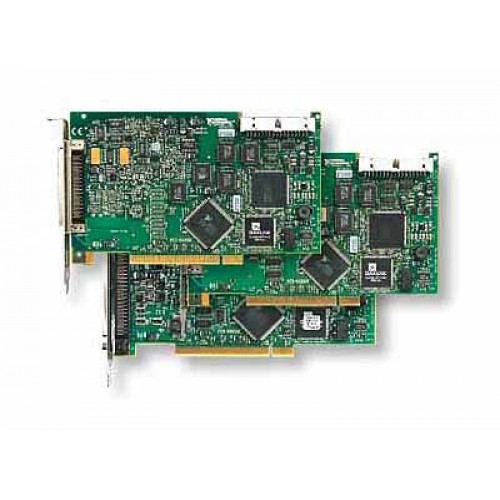

NI PCI-6023E (Legacy)

Name: NI PCI-6023E (Legacy)
Brand: National Instruments

The NI PCI-6023E is a legacy PCI multifunction DAQ device with 16 analog inputs, 12-bit resolution, 200 kS/s sampling, eight digital I/O lines and two 24-bit counters.

ManufacturerNational Instruments

ModelPCI-6023E (Legacy)

Part Number777742-01 · 185415-01

Product TypeMultifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6023E (Legacy)

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCI

Analog inputs16 single-ended or 8 differential

Resolution and sampling12-bit; 200 kS/s

Digital I/O8 lines

CountersTwo 24-bit counters

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6023E belongs to NI's E Series DAQ family and combines analog acquisition, digital I/O and counter functions on a PCI board.

NI identifies laboratory automation, research, design verification and manufacturing test as application areas. SCC or SCXI signal conditioning can extend the device to sensor and high-voltage measurements.

Software-selectable single-ended or differential analog input configuration.
Selectable bipolar input ranges from ±50 mV to ±10 V.
Eight digital I/O lines alongside two 24-bit counters.

Verified specifications

Technical data

Verified product specifications.

Bus interface	PCI
Analog input configuration	16 single-ended or 8 differential
ADC resolution	12 bit
Sampling rate	200 kS/s
Analog input ranges	±10 V, ±5 V, ±500 mV, ±50 mV
Input coupling	DC
Digital I/O lines	8
Digital logic compatibility	TTL/CMOS
Counter count	2
Counter resolution	24 bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI E Series DAQ

Platform and family

PCI-6023E

Multifunction acquisition device

Historical driver evidence

NI-DAQmx 18.6 lists the PCI-6023E among supported E Series devices.

Check the intended host and operating system against the selected driver release; historical support does not establish current driver compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6023E Product PageProduct Page · ni.com

Open →

6023E/6024E/6025E User ManualUser Manual · download.ni.com

Open →

NI-DAQmx 18.6 ReadmeHistorical Driver Support Documentation · ni.com

Open →

PCI-6023E signal connections and specifications in the shared user manualTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many differential analog inputs does the PCI-6023E provide?

It supports eight differential inputs or 16 single-ended inputs, with software-selectable configuration.

Which part numbers does NI associate with the PCI-6023E?

NI lists 777742-01 for the multifunction I/O and NI-DAQ offering and 185415-01 for the board-only offering. These identify manufacturer variants, not the contents of this individual catalog item.

Is there documented NI-DAQmx support for this legacy board?

Yes. NI-DAQmx 18.6 explicitly lists the PCI-6023E. This is historical support evidence; check operating-system and application requirements before selecting a driver.
