NI BNC-2111

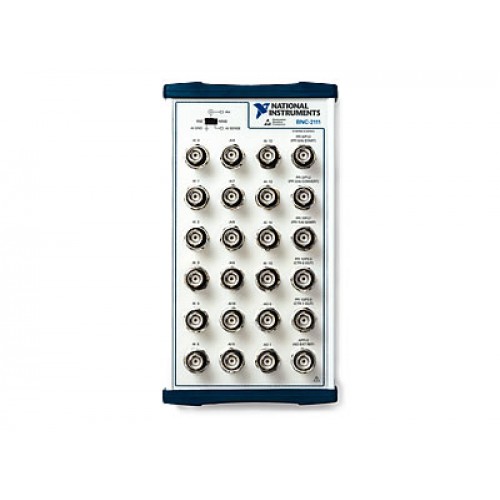

The NI BNC-2111 is a connector block for accessing signals on compatible NI data acquisition devices. Its 24 BNC connectors provide connections for single-ended analog inputs, analog outputs, digital/PFI signals and an analog output reference.

ManufacturerNational Instruments
ModelBNC-2111
Part Number779347-01
Product TypeSingle-ended BNC connector block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: BNC-2111

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Signal connections24 BNC connectors
Analog input16 single-ended signal connections
Analog output2 signal connections plus external reference
Digital access5 digital I/O / PFI signal connections
DAQ interface68-pin connection
