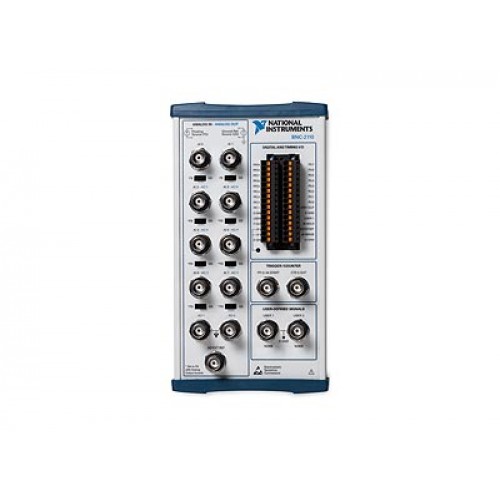

NI BNC-2110, front view
NI BNC-2110, front view additional viewNI BNC-2110, front view additional viewNI BNC-2110, front view additional viewNI BNC-2110, front view additional viewNI BNC-2110, front view additional view
6 images: additional views below.Click to enlarge
National Instruments · NI DAQ

NI BNC-2110

The NI BNC-2110 is a shielded terminal block for supported NI multifunction I/O and analog output devices. It provides BNC and spring-terminal access to measurement and control signals through a 68-pin SCSI connection.

ManufacturerNational Instruments
ModelBNC-2110
Part Number777643-01
Product TypeShielded BNC terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: BNC-2110

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
DAQ connection68-pin male SCSI
BNC connections15 female BNC connectors
Terminal block30 spring-terminal positions
Analog input modeDifferential
MountingDesktop or optional DIN rail mounting
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The BNC-2110 brings analog signals, selected digital signals and two user-defined connections to accessible front-panel connectors. Its shielded enclosure supports signal connections between measurement equipment and compatible NI DAQ hardware.

  • Shielded enclosure for analog and selected digital signal breakout.
  • FS/GS switches accommodate floating and ground-referenced analog input sources.
  • Two user-defined BNC connections provide configurable access to digital or timing signals through corresponding spring terminals.
Verified specifications

Technical data

Verified product specifications.

Manufacturer part number777643-01
I/O connector68-pin SCSI male
BNC connectors15 connectors
Spring terminal block30 positions
Wire gauge28–16 AWG
Dimensions19.05 × 10.48 × 3.51 cm
Weight798 g
Operating temperature0 to 70 °C
Storage temperature−55 to 125 °C
Relative humidity5 to 90, noncondensing %
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ

Supported multifunction I/O and analog output devices

BNC-2110

Shielded BNC and spring-terminal signal breakout

Cable selection

Match the cable and DAQ connector to the device-specific NI accessory table.

A matching connector alone does not establish compatibility. Verify the DAQ model, connector number and signal mapping.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI BNC-2110 Product PageProduct Page · ni.com
Open →
BNC-2110 Installation GuideInstallation Guide And Specifications · download.ni.com
Open →
NI DAQ Multifunction I/O Accessory GuideTechnical resource
Open →
NI 62xx Cable and Accessory CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
BNC-2111View product →
Related model
BNC-2120View product →

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the BNC-2110 support single-ended analog input measurements?

NI specifies the BNC-2110 for differential analog input signals. Configure the connected DAQ channel for differential measurement and set its FS/GS switch for the signal source.

How does the BNC-2110 differ from the BNC-2111?

NI identifies the BNC-2110 as a differential analog input accessory and the BNC-2111 as a single-ended analog input accessory. Check the DAQ device's accessory guide before choosing either model.

Can the BNC-2110 be mounted on a DIN rail?

Yes. The installation guide describes desktop use and DIN rail mounting with an optional mounting kit.

Is the BNC-2110 supported by every NI 673x device?

No. NI explicitly states that the older installation guide's NI 673x support statement does not apply to the NI 6738 and NI 6739.
