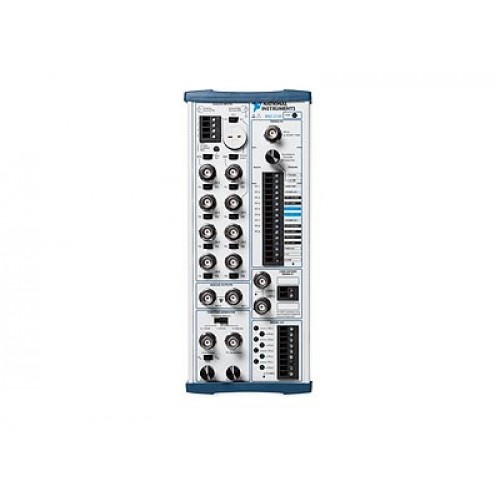

NI BNC-2120, front view
NI BNC-2120, front view additional viewNI BNC-2120, front view additional viewNI BNC-2120, front view additional viewNI BNC-2120, front view additional viewNI BNC-2120, front view additional view
9 images: additional views below.Click to enlarge
National Instruments · NI multifunction DAQ

NI BNC-2120

The NI BNC-2120 is a shielded connector block for supported NI DAQ devices. It combines signal breakout connections with a function generator, quadrature encoder, and thermocouple cold-junction compensation support.

ManufacturerNational Instruments
ModelBNC-2120
Part Number777960-01
Product TypeShielded BNC DAQ connector block with function generator
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: BNC-2120

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Manufacturer part number777960-01
Analog input connections8 differential BNC inputs
Analog output connections2 BNC connectors
MountingDesktop or optional DIN-rail mounting
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The BNC-2120 provides accessible connections for analog signals, selected digital signals, and two user-defined signals. Its shielded enclosure supports measurement signal integrity.

Built-in signal-generation and encoder functions extend its role beyond a basic breakout block. NI documents its use with supported E, M, S, and X Series DAQ hardware; the required cable depends on the device.

  • Integrated function generator, quadrature encoder, temperature reference, and thermocouple connector.
  • Digital I/O screw terminals with line-state indicators.
  • Two user-defined BNC connections for routing selected digital or timing signals.
Verified specifications

Technical data

Verified product specifications.

DAQ interface68-pin I/O connector
Default analog inputs8 differential channels
Analog output connections2 BNC connectors
Function generator waveformsSine, triangle, and TTL-compatible square wave
