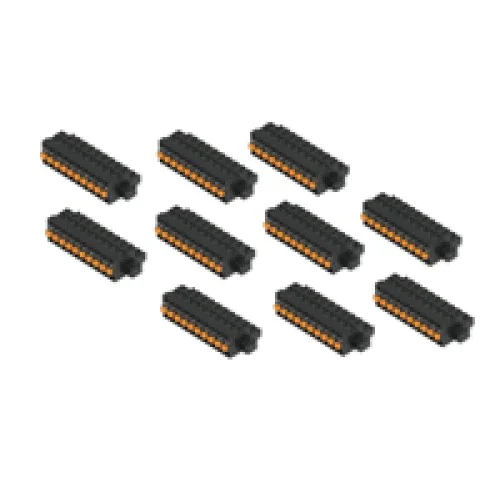

National Instruments NI 9980 10-position spring terminal plug

1 image: Click to enlarge

National Instruments · C Series

NI 9980

The NI 9980 is a 10-position spring terminal plug for supported NI C Series modules. It provides direct wiring connectivity rather than signal conditioning or data acquisition.

ManufacturerNational Instruments

ModelNI 9980

Part Number197991-01

Product Type10-position spring terminal plug

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI 9980

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product typeSpring terminal connector

Positions10

Part number197991-01

Module familySupported C Series spring-terminal variants

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI 9980 connects field wiring directly to a compatible C Series module through a removable spring terminal plug. It is a connectivity accessory, not a PXI Express measurement module.

NI's accessory guide identifies the NI 9980 for the 10-position spring-terminal versions of modules including the NI 9201, NI 9215, and NI 9221. Match the module's connector variant before selecting this accessory.

10-position spring terminal wiring connection.
10-pin male COMBICON module-side connection.
Direct connection to supported C Series modules.

Verified specifications

Technical data

Verified product specifications.

Number of positions	10 positions
Front-end connection	10-pin female spring terminal
Back-end connection	10-pin male COMBICON
Mounting	C Series module

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

C Series

Module family served by the connector

NI 9980

10-position spring terminal connectivity accessory

Connector selection

Use the module's exact connector variant to determine suitability.

Compatibility applies to the specified spring-terminal variants, not every module bearing the same model number.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9980 Product PageProduct Page · ni.com

Open →

C Series Spring Terminal I/O Cable and Accessory GuideCompatibility Guide · ni.com

Open →

NI-9980 Dimensional DrawingsDimensional Drawings And CAD Resources · ni.com

Open →

NI-9980 Mechanical Drawings and CAD ModelsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the NI 9980 a data acquisition module?

No. It is a spring terminal connector for supported C Series modules; measurement functions belong to the connected module.

Which catalog modules can use the NI 9980?

NI lists the 10-position spring-terminal variants of the NI 9201, NI 9215, and NI 9221 among the supported modules. Verify the exact variant before use.
