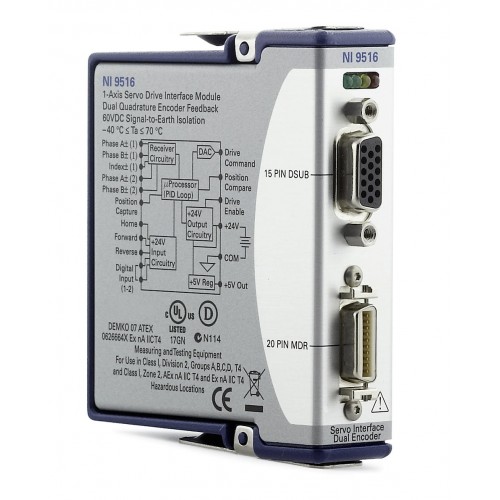

National Instruments NI-9516 Servo drive interface module
1 image: Click to enlarge
National Instruments · CompactRIO

NI-9516

The NI-9516 is a single-axis C Series servo drive interface module for CompactRIO with two encoder inputs. It provides torque and position control for brushed and brushless servo applications.

ManufacturerNational Instruments
ModelNI-9516
Part Number780112-01
Product TypeServo drive interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9516

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Motion axes1 servo axis
Feedback2 incremental encoder inputs
Drive command±10 V analog
PlatformCompactRIO / C Series
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9516 connects a CompactRIO motion-control system to an external servo drive. NI documents an analog ±10 V interface and an NI 9514/16-to-AKD cable option for supported AKD drive configurations.

For NI 951x systems using SoftMotion and the RIO Scan Engine, control loops, encoder settings, and drive signals are configured in the LabVIEW project without requiring FPGA programming.

  • Dual encoder feedback for a single servo axis.
  • Home-switch, limit-switch, and digital inputs.
  • Onboard spline interpolation and PID control.
Verified specifications

Technical data

Verified product specifications.

Number of axes1 axis
Encoder inputs2 inputs
Axis typeBrushed servo; brushless servo
Analog drive interface±10 V
Control modesTorque and position
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO / C Series

Hardware platform and module family

NI-9516

Servo drive interface

System role

Interfaces to an external servo drive rather than supplying motor power.

Check the exact controller, chassis, software version, drive interface, and cable configuration before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9516 Official Product PageProduct Page · ni.com
Open →
NI 9516 Operating Instructions and Specifications — June 2016Archived Operating Instructions And Specifications · ni.com
Open →
AKD Servo Drives and Brushless Servo Motors With Smart Feedback DevicesSystem Datasheet · ni.com
Open →
SoftMotion Compatibility with LabVIEW Real-Time ControllersTechnical resource
Open →
C Series Module and CompactDAQ or CompactRIO Hardware CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
