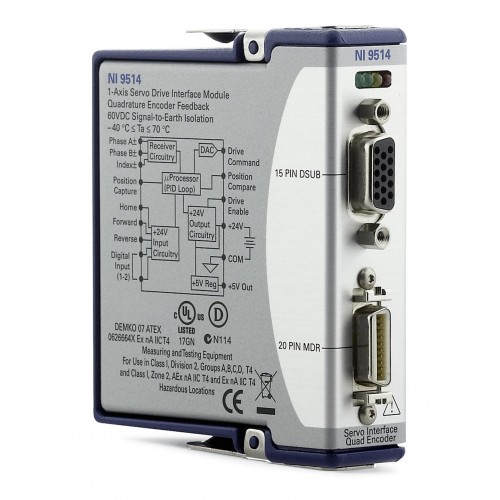

National Instruments NI-9514 C Series Motor Drive Interface Module
1 image: Click to enlarge
National Instruments · CompactRIO

NI-9514

The NI-9514 is a single-axis C Series servo drive interface for CompactRIO. It combines one incremental encoder feedback input with motion I/O and torque and position control.

ManufacturerNational Instruments
ModelNI-9514
Product TypeC Series Motor Drive Interface Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9514

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompactRIO, C Series
Motion axes1 servo axis
Encoder feedback1 incremental encoder input
Drive command±10 V analog
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9514 interfaces a CompactRIO motion system with an external servo drive. NI documents an analog ±10 V drive interface, including connections to AKD analog servo drives.

Home and limit switch inputs, digital inputs, and incremental encoder feedback support axis monitoring and control. The module processor provides spline interpolation and PID control functionality.

  • Single-axis servo drive interface.
  • Incremental encoder input for position feedback.
  • Home switch, limit switch, and digital inputs.
  • Torque and position mode control.
Verified specifications

Technical data

Verified product specifications.

Axis count1 axis
Encoder input count1 input
Drive interface signal±10 V analog
Supported hardware platformCompactRIO
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO / C Series

Hardware platform and module family

NI-9514

Single-axis servo drive interface

External drive connection

NI documents the NI 9514/16 to AKD Drive Cable for AKD analog servo drive connections.

Verify controller, chassis, software version, and drive wiring for the intended system; C Series format alone does not establish compatibility.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9514 Product PageProduct Page · ni.com
Open →
Connect Servo Motor with AKD Servo Drive and NI 9514/9512Connection Guide · knowledge.ni.com
Open →
AKD Servo Drives and Brushless Servo Motors With Smart Feedback DevicesSystem Datasheet · ni.com
Open →
C Series Hardware Compatibility with LabVIEWTechnical resource
Open →
SoftMotion Compatibility with LabVIEW Real-Time ControllersTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9516View product →
Related model
NI-9512View product →
