National Instruments NI-9512 C Series motor drive interface module

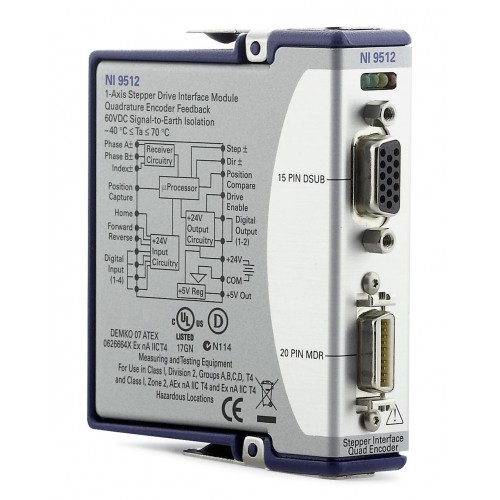

1 image: Click to enlarge

National Instruments · CompactRIO

NI-9512

The NI-9512 is a single-axis C Series stepper drive interface module with one incremental encoder input. It provides motion I/O for interfacing a stepper drive with a CompactRIO system.

ManufacturerNational Instruments

ModelNI-9512

Part Number779944-01

Product TypeC Series motor drive interface module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9512

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Axis typeStepper

Controlled axes1

Encoder inputs1

PlatformCompactRIO

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9512 interfaces motion-control signals to an external stepper drive rather than supplying motor power directly. NI documents a complete integration workflow with ISM-7400/7401/7402 integrated steppers, including drive commands, enable signals, encoder wiring, and SoftMotion axis configuration.

NI 951x drive interface modules use the NI RIO Scan Engine to connect SoftMotion with motor drives. Encoder settings and drive signals are configured in the LabVIEW project without requiring FPGA programming for this interface.

Home-switch and limit-switch inputs for axis referencing and travel limits.
Incremental encoder feedback and general-purpose digital I/O.
Position capture and position compare functions.
Onboard spline interpolation and NI step-generation processing.

Verified specifications

Technical data

Verified product specifications.

Axis type	Stepper
Number of axes	1
Number of encoder inputs	1
Encoder feedback type	Incremental
Supported hardware platform	CompactRIO

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO / C Series

Hardware platform and module format

NI-9512

Single-axis stepper drive interface

Motion software interface

LabVIEW SoftMotion through the NI RIO Scan Engine.

Verify controller, HSI slot, and software support before integration; this module is not supported in CompactDAQ chassis.
