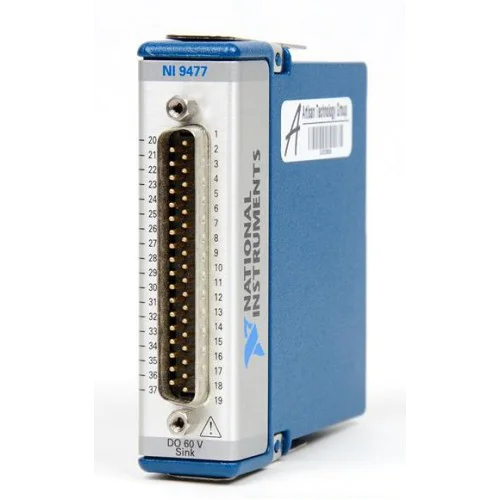

NI-9477

The NI-9477 is a 32-channel C Series sinking digital output module for CompactDAQ and CompactRIO systems. It interfaces with industrial loads such as relays, solenoids and motors.

ManufacturerNational Instruments

ModelNI-9477

Part Number780174-01

Product TypeSinking digital output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9477

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Outputs32 sinking digital outputs

Signal compatibility5–60 V

Connection37-pin D-Sub

Module current limit20 A total maximum

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for industrial digital output tasks, the NI-9477 switches load current through sinking outputs. Channels can be connected in parallel for higher-current loads within NI's channel and module limits.

The NI-9477 uses serial digital communication. In CompactDAQ systems it cannot access the chassis onboard counters; select a supported parallel digital module when counter access is required.

Output-only design with no digital input or bidirectional channels.
Channel-to-earth isolation for industrial signal interfacing.
Parallel channel wiring supports higher-current load control within specified limits.

Verified specifications

Technical data

Verified product specifications.

Digital output channels	32 channels
Output type	Sinking
External supply voltage	0–60 VDC
Continuous current per channel	1 maximum on up to 20 channels; total module limit applies A
Continuous current, module total	20 maximum A
Channel-to-earth continuous isolation	60, Measurement Category I VDC
Channel-to-channel isolation	None
Short-circuit protection	None
Operating temperature	-40 to 70 °C
