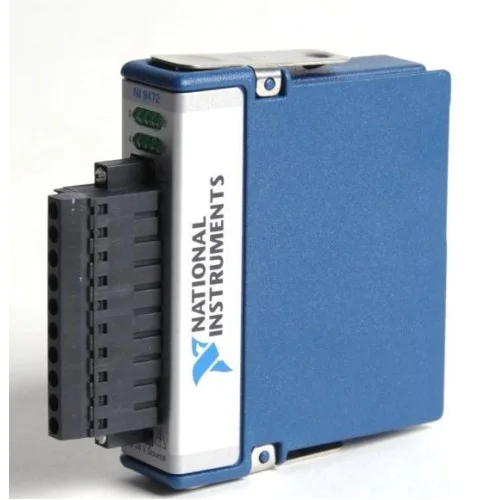

National Instruments NI-9472 C Series digital output module

1 image: Click to enlarge

National Instruments · CompactDAQ and CompactRIO

NI-9472

The NI-9472 is an 8-channel sourcing digital output module for CompactDAQ and CompactRIO. Connector variants have different isolation ratings; this catalog record requires variant confirmation.

ManufacturerNational Instruments

ModelNI-9472

Product TypeC Series digital output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9472

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Outputs8 sourcing digital channels

Signal range6–30 V

Continuous current0.75 A maximum per channel

Output delay100 µs maximum at full load

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9472 interfaces industrial logic signals with a modular NI system. Each output channel has an LED indicating its state.

NI offers screw-terminal, spring-terminal, and D-SUB versions. The supplied tag references 779004-01, which NI identifies as screw-terminal, while the legacy description specifies D-SUB. The model identity is retained without assigning a confirmed part number.

Eight sourcing outputs for industrial digital signals.
Individual channel-status LEDs.
Maximum continuous output current of 0.75 A per channel.

Verified specifications

Technical data

Verified product specifications.

Digital output channels	8 channels
Output type	Sourcing
External supply voltage	6–30 VDC
Continuous output current per channel	0.75 maximum A
Output delay at full load	100 maximum µs
Channel-to-earth isolation by variant	Screw/spring terminal: 250 Vrms, CAT II; D-SUB: 60 VDC, CAT I

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

System platforms

NI-9472

C Series digital output module

Compatibility

Designed for CompactDAQ and CompactRIO systems; confirm the intended chassis and software configuration.

Confirm the actual part number and connector before selecting wiring accessories or applying isolation ratings.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9472 Official Product PageProduct Page · ni.com

Open →

NI 9472 DatasheetDatasheet · download.ni.com

Open →

NI-9472 Dimensional DrawingsDrawings And CAD Models · ni.com

Open →

C Series Output Timing and Current Specifications ExplainedTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9472 provide sourcing or sinking outputs?

It provides eight sourcing digital outputs.

Is part number 779004-01 the D-SUB version?

No. NI identifies 779004-01 as screw-terminal and 779137-01 as D-SUB. This record contains conflicting variant information, so the actual item must be checked.

What does the 100 µs specification mean?

NI specifies a maximum output delay of 100 µs at full load, including propagation from the chassis connection to the output pin.
