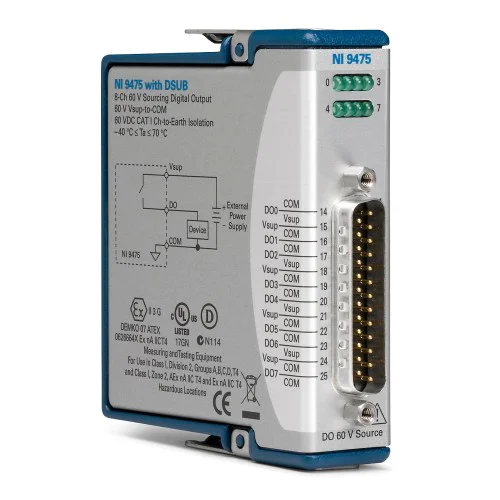

The NI-9475 is an eight-channel C Series sourcing digital output module for industrial devices. Each channel supplies up to 1 A at voltages up to 60 VDC.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The NI-9475 provides sourcing outputs for solenoids, motors, actuators, relays, and lamps. Its C Series form factor places it within NI's modular measurement and control equipment family.
Field wiring uses a 25-pin D-SUB connector. Output voltage depends on the external supply and the voltage drop across the output impedance; channel-to-earth isolation does not provide isolation between individual channels.
Verified product specifications.
| Digital output channels | 8 channels |
|---|---|
| Output type | Sourcing |
| External power supply range | 0–60 VDC |
| Continuous output current per channel | 1 maximum A |
| Output delay at full load | 1 maximum µs |
| Output impedance | 0.14 maximum Ω |
| Power-on output state | Channels off |
| Field connector | 25-pin D-SUB |
| Continuous channel-to-earth isolation | 60; Measurement Category I VDC |
| Channel-to-channel isolation | None |
| Operating temperature | -40 to 70 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular I/O family
Sourcing digital output module
25-pin D-SUB
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It provides eight sourcing digital outputs, each rated for up to 1 A continuous current.
The specifications identify 1 µs as the maximum output delay at full load. It should not be described as a frequency in hertz.
No. The module has no channel-to-channel isolation; its continuous channel-to-earth rating is 60 VDC, Measurement Category I.
