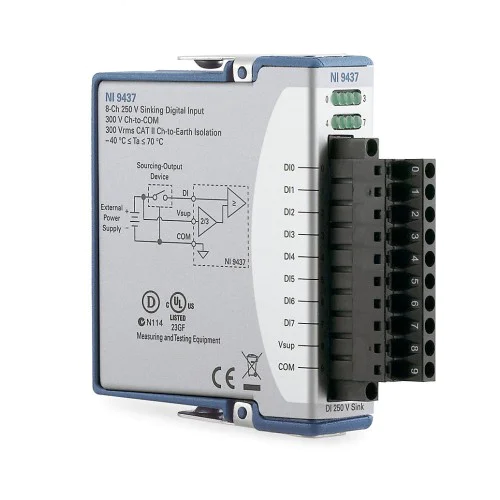

National Instruments NI-9437 C Series sinking digital input module

1 image: Click to enlarge

National Instruments · CompactDAQ and CompactRIO

NI-9437

The NI-9437 is an eight-channel C Series sinking digital input module for 24–250 VDC signals. It supports CompactDAQ and CompactRIO systems and uses a supply-referenced switching threshold.

ManufacturerNational Instruments

ModelNI-9437

Product TypeC Series sinking digital input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9437

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Digital inputs8 sinking channels

Logic range24–250 VDC

Input delay1 µs maximum

Threshold referenceNominally two-thirds of VSUP

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for high-voltage digital signals, the NI-9437 fits rail, power, industrial and automotive applications. Its ratiometric threshold follows the user supply voltage rather than using a fixed switching level.

All eight inputs share one VSUP terminal and therefore one threshold reference. The module provides earth-ground isolation, not channel-to-channel isolation.

Eight sinking digital inputs for high-voltage DC logic.
Supply-tracking ratiometric switching threshold.
Supports access to CompactDAQ chassis counter inputs.

Verified specifications

Technical data

Verified product specifications.

Digital input channels	8 channels
Input type	Sinking
Logic voltage range	24–250 VDC
Maximum input delay	1 µs
Channel-to-channel isolation	None

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host platforms

NI-9437

C Series digital input module

Compatibility

Designed for NI CompactDAQ and CompactRIO chassis and controllers.

Confirm the physical part number and terminal style before selecting wiring accessories.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9437 Product Page and Variant TableProduct Page · ni.com

Open →

NI 9437 DatasheetDatasheet · download.ni.com

Open →

NI 9437 Getting Started GuideGetting Started Guide · download.ni.com

Open →

CompactDAQ Module Support for Accessing On-board CountersTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does each input have its own threshold reference?

No. All eight inputs share VSUP and use the same supply-referenced threshold.

Is part number 783737-01 a screw-terminal version?

No. NI identifies 783737-01 as the spring-terminal version and 783393-01 as a screw-terminal version. This catalog record contains conflicting terminal information, so its exact variant needs confirmation.
