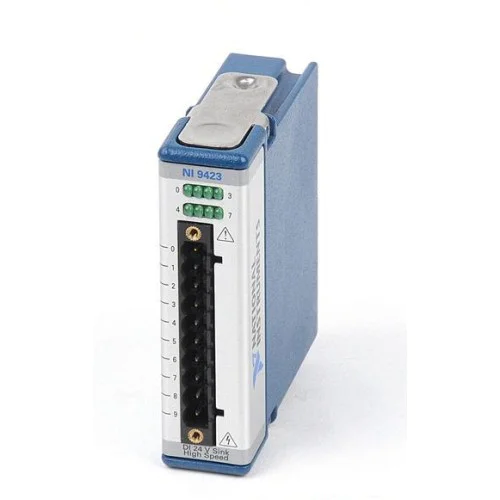

1 image: Click to enlarge

National Instruments · CompactDAQ / CompactRIO

NI-9423

The NI-9423 is an 8-channel C Series sinking digital input module for industrial logic signals, with 1 µs digital update timing. It supports correlated digital measurements, triggering, and synchronization in CompactDAQ systems.

ManufacturerNational Instruments

ModelNI-9423

Part Number779009-01

Product Type8-channel sinking digital input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9423

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs8 sinking digital input channels

Digital update timing1 µs

Logic levels12 V and 24 V

Isolation250 Vrms channel-to-earth ground

Terminal variant779009-01: screw terminal; physical variant requires confirmation

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9423 connects industrial switches, transducers, and other discrete logic devices to a modular NI measurement system. Each input has an LED for channel-state indication, and the module accepts discrete logic signals up to 30 V.

As a correlated digital module, it supports measurements synchronized with other operations in a CompactDAQ chassis. NI also documents use in CompactRIO systems. The catalog tag identifies part number 779009-01, which NI assigns to the screw-terminal version; the legacy spring-terminal description conflicts with that identification.

Eight dedicated sinking digital inputs.
Individual LEDs indicate input channel status.
Correlated digital measurement, triggering, and synchronization in CompactDAQ.
250 Vrms channel-to-earth-ground isolation.

Verified specifications

Technical data

Verified product specifications.

Digital input channels	8 channels
Input type	Sinking
Maximum digital update rate (NI terminology)	1 µs
Maximum input delay	1 µs
ON-state input voltage	11 to 30 V
OFF-state input voltage	≤5 V
Continuous channel-to-earth-ground isolation	250; Measurement Category II Vrms
Channel-to-channel isolation	None
Operating temperature	-40 to 70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

C Series

Modular I/O interface for CompactDAQ and CompactRIO

NI-9423

Sinking digital input module

CompactDAQ

Supports correlated measurements, triggering, and synchronization.

Confirm the module label and terminal variant before selecting wiring accessories; 250 Vrms isolation does not permit 250 V logic inputs.
