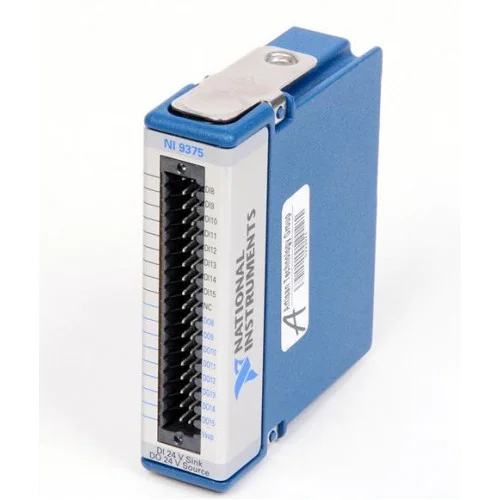

NI (National Instruments) NI-9375 30 V, 32-Channel (Sinking Input, Sourcing Output), 7 µs (Input)/500 µs (Output) C Series Digital Module

1 image: Click to enlarge

NI (National Instruments) · C Series

NI-9375

The NI-9375 is a 30 V, 32-channel C Series digital module with 16 sinking digital input channels and 16 sourcing digital output channels.

ManufacturerNI (National Instruments)

ModelNI-9375

Part Number785192-01 · 781030-02

Product Type30 V, 32-Channel (Sinking Input, Sourcing Output), 7 µs (Input)/500 µs (Output) C Series Digital Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9375

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Supported Hardware PlatformC Series

Current Flow DirectionSinking Input, Sourcing Output

Digital I/O Logic Levels12 V, 24 V

Digital I/O Isolation60 VDC Ch-Earth Ground Isolation

Digital Input Only Channels16

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9375 combines digital input and output functions in one C Series module. Its 32 channels are divided into 16 dedicated sinking inputs and 16 dedicated sourcing outputs, rather than bidirectional channels.

The enclosed module uses single-ended signaling and supports 12 V and 24 V digital logic levels. Listed specifications include 60 VDC channel-to-earth ground isolation and an operating temperature range of -40 °C to 70 °C.

Combines 16 digital input-only channels and 16 digital output-only channels.
Sinking inputs and sourcing outputs support distinct input and output current-flow requirements.
Supports 12 V and 24 V digital logic levels.
Input and output timing are specified separately: 7 µs for inputs and 500 µs for outputs.
Provides 60 VDC channel-to-earth ground isolation.
Enclosed C Series module with a listed operating temperature range of -40 °C to 70 °C.

Verified specifications

Technical data

Verified product specifications.

Supported Hardware Platform	C Series
Current Flow Direction	Sinking Input, Sourcing Output
Enclosed	Yes
Digital I/O Logic Levels	12 V, 24 V
Digital I/O Isolation	60 VDC Ch-Earth Ground Isolation
Number of Digital Input Only Channels	16
Number of Digital Output Only Channels	16
Maximum Digital Update Rate	500 µs
Operating Temperature Range	-40 °C to 70 °C
Bus Connection	C Series
Maximum Clock Rate	142 kHz
Signaling Type	Single-Ended
NI part numbers	785192-01, 781030-02, 781030-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9375

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many input and output channels does the NI-9375 have?

It has 16 digital input-only channels and 16 digital output-only channels. None of the channels are bidirectional.

Does the NI-9375 use sinking or sourcing I/O?

The NI-9375 uses sinking digital inputs and sourcing digital outputs, with listed digital logic levels of 12 V and 24 V.

Are the input and output timing specifications the same?

No. The supplied verified product identity specifies 7 µs for inputs and 500 µs for outputs.

What isolation is specified for the NI-9375?

The listed digital I/O isolation is 60 VDC channel-to-earth ground isolation; this is not a channel-to-channel isolation specification.

Which NI part numbers are listed for the NI-9375?

The listed part numbers are 785192-01, 781030-02 and 781030-01. The supplied data does not establish the configuration differences between these part numbers.
