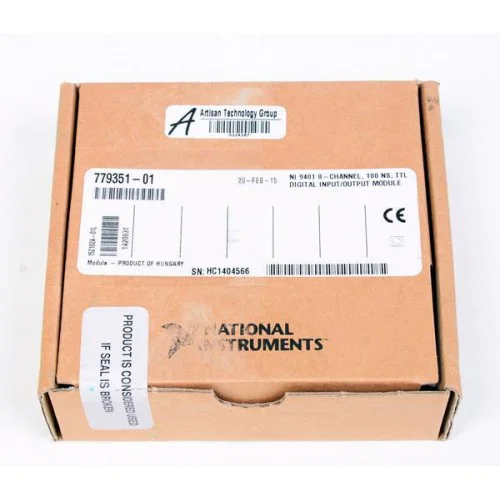

NI (National Instruments) NI-9401 5 V/TTL, 8 Bidirectional Channels, 100 ns C Series Digital Module
1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9401

The NI-9401 is an enclosed C Series digital I/O module with 8 bidirectional 5 V TTL channels. Channel direction is configurable in 4-bit groups for input, output, or mixed input/output operation.

ManufacturerNI (National Instruments)
ModelNI-9401
Part Number779351-01 · 782401-01
Product Type5 V/TTL, 8 Bidirectional Channels, 100 ns C Series Digital Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9401

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Hardware PlatformC Series
Bidirectional Digital Channels8
Current Flow DirectionSinking Input, Sourcing Output
Digital I/O Logic Levels5 V TTL
Digital I/O Isolation60 VDC Ch-Earth Ground Isolation
Front Connection TypeD-SUB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9401 provides eight bidirectional digital channels within the NI C Series module family. It uses 5 V TTL logic, single-ended signaling, and a D-SUB front connection.

Direction is configured in groups of four channels, allowing eight inputs, eight outputs, or four inputs and four outputs. This grouping is important when assigning signals: direction is not independently selectable for each channel.

  • Eight bidirectional channels for digital input or output operation.
  • 5 V TTL logic with single-ended signaling.
  • Direction configuration in 4-bit groups supports all-input, all-output, or evenly split input/output configurations.
  • D-SUB front connection for signal wiring.
  • Enclosed C Series module construction.
Verified specifications

Technical data

Verified product specifications.

Supported Hardware PlatformC Series
Number of Bidirectional Digital Channels8
Current Flow DirectionSinking Input, Sourcing Output
EnclosedYes
Digital I/O Logic Levels5 V TTL
Digital I/O Isolation60 VDC Ch-Earth Ground Isolation
Front Connection TypeD-SUB
Maximum Digital Update Rate25 ns
Operating Temperature Range-40 °C to 70 °C
Bus ConnectionC Series
Maximum Clock Rate30 MHz
Signaling TypeSingle-Ended
NI part numbers779351-01, 782401-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9401

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9402View product →
Related model
NI-9403View product →
Related model
NI-9422View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many digital channels does the NI-9401 have?

It has eight bidirectional digital channels.

Can the NI-9401 use inputs and outputs at the same time?

Yes. Direction is configured in 4-bit groups, allowing four inputs and four outputs. It can also be configured as eight inputs or eight outputs.

What logic levels and front connection does the NI-9401 use?

It uses 5 V TTL digital logic and a D-SUB front connection.
