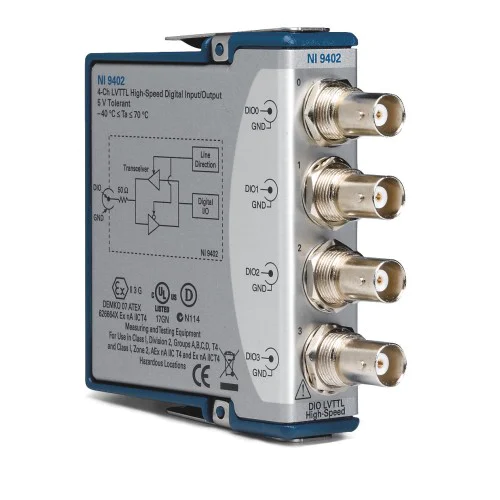

NI (National Instruments) NI-9402 LVTTL, 4 Bidirectional Channels, 55 ns C Series Digital Module
1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9402

The NI-9402 is a C Series digital I/O module with 4 configurable bidirectional channels, 3.3 V TTL logic, and BNC front connections.

ManufacturerNI (National Instruments)
ModelNI-9402
Part Number779987-01
Product TypeLVTTL, 4 Bidirectional Channels, 55 ns C Series Digital Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9402

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Hardware PlatformC Series
Bidirectional Digital Channels4
Current Flow DirectionSinking Input, Sourcing Output
Digital I/O Logic Levels3.3 V TTL
Digital I/O IsolationNone
Front Connection TypeBNC
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9402 provides per-channel configurable digital inputs or outputs in the C Series module format. Its four bidirectional channels use 3.3 V TTL logic and single-ended signaling.

BNC front connections provide access to the digital signals. The module has an enclosed design; controller, chassis, and software support should be checked for the intended system before integration.

  • Four bidirectional digital channels configurable for input or output.
  • 3.3 V TTL digital I/O with single-ended signaling.
  • BNC front connections.
  • Sinking inputs and sourcing outputs.
  • Enclosed C Series module design.
  • Operating temperature range of -40 °C to 70 °C.
Verified specifications

Technical data

Verified product specifications.

Supported Hardware PlatformC Series
Number of Bidirectional Digital Channels4
Conformal CoatedNo
Current Flow DirectionSinking Input, Sourcing Output
EnclosedYes
Digital I/O Logic Levels3.3 V TTL
Digital I/O IsolationNone
Front Connection TypeBNC
Maximum Digital Update Rate25 ns
Operating Temperature Range-40 °C to 70 °C
Bus ConnectionC Series
Maximum Clock Rate20 MHz
Signaling TypeSingle-Ended
NI part numbers779987-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9402

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
