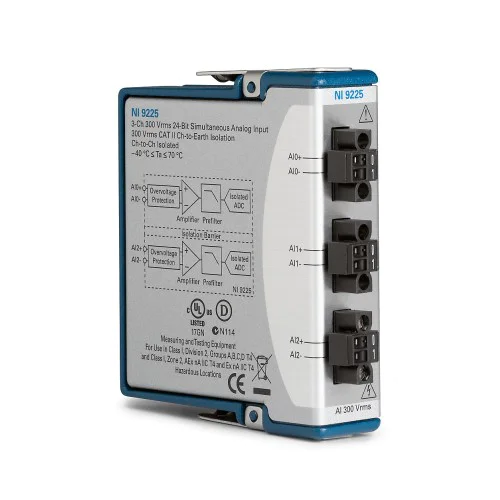

The NI-9225 provides three differential voltage inputs with 300 Vrms measurement capability and simultaneous sampling.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This C Series module supports high-voltage acquisition for power and electrical test systems. NI identifies transient and harmonic analysis as uses for its simultaneous sampling capability.
Verified product specifications.
| Differential analog input channels | 3 channels |
|---|---|
| Analog input range | 0 to 300 Vrms |
| Maximum sample rate | 50 kS/s/ch |
| ADC resolution | 24 bits |
| Simultaneous sampling | Yes |
| Channel-to-channel isolation | 600 Vrms |
| Operating temperature | -40 to 70 °C |
| Conformal coating for part number 780159-02 | Yes |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module platform
Voltage input module
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. NI identifies 780159-02 as the conformal-coated variant.
Consult NI's C Series Module and CompactDAQ or CompactRIO Hardware Compatibility with LabVIEW table for the NI-9225 and your intended system.
