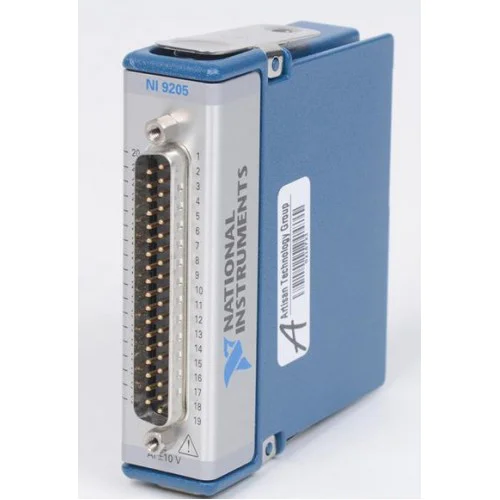

National Instruments NI-9205 C Series voltage input module

1 image: Click to enlarge

National Instruments · CompactDAQ and CompactRIO

NI-9205

The NI-9205 provides 32 single-ended or 16 differential voltage inputs with 16-bit resolution and multiplexed sampling up to 250 kS/s aggregate. This record identifies the 779357-01 D-SUB version.

ManufacturerNational Instruments

ModelNI-9205

Part Number779357-01

Product TypeC Series voltage input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9205

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Input channels32 single-ended or 16 differential

Resolution16 bits

Maximum sampling250 kS/s aggregate

Input ranges±0.2 V, ±1 V, ±5 V and ±10 V

Connection37-position D-SUB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9205 is a C Series analog voltage acquisition module for CompactDAQ and CompactRIO systems. Its programmable input ranges accommodate voltage signals from ±200 mV to ±10 V.

A multiplexed front end shares one ADC across the enabled channels. The 250 kS/s rating is aggregate, not per channel; NI gives 15.625 kS/s per channel as the maximum when acquiring all 16 differential channels.

Selectable single-ended or differential voltage acquisition.
Four per-channel programmable voltage ranges.
Programmable-gain instrumentation amplifier feeding a shared 16-bit ADC.
D-SUB version provides 60 VDC continuous channel-to-earth isolation; channels are not isolated from each other.

Verified specifications

Technical data

Verified product specifications.

Maximum single-ended inputs	32 channels
Maximum differential inputs	16 channels
ADC resolution	16 bits
Maximum aggregate sample rate	250 kS/s
Sampling architecture	Multiplexed; not simultaneous
Nominal input ranges	±0.2, ±1, ±5, ±10 V
Input coupling	DC
Front connector	37-position D-SUB
Continuous channel-to-earth isolation, D-SUB	60 VDC
Channel-to-channel isolation	None

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host system platforms

NI-9205

C Series voltage input module

Signal connection

779357-01 uses D-SUB connectivity.

Do not apply spring-terminal isolation ratings to this D-SUB version. Check chassis and software support before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9205 Official Product Page — 779357-01Product Page · ni.com

Open →

NI 9205 DatasheetDatasheet · download.ni.com

Open →

NI-9205 Getting StartedGetting-started Guide · ni.com

Open →

NI-9205 Dimensional DrawingsDrawings And CAD Models · ni.com

Open →

C Series D-SUB Cable and Accessory GuideTechnical resource

Open →

C Series Module and Hardware Compatibility with LabVIEWTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9205 sample all channels simultaneously?

No. It multiplexes channels into a shared ADC. Its maximum 250 kS/s sampling rate is shared across the active channels.

Which connector version does this record identify?

The supplied part number 779357-01 identifies the D-SUB version. NI also offers spring-terminal variants, so confirm the module label and connector when matching existing wiring.

Are the input channels individually isolated?

No. The channels share COM. The D-SUB version has 60 VDC continuous channel-to-earth isolation, not channel-to-channel isolation.
