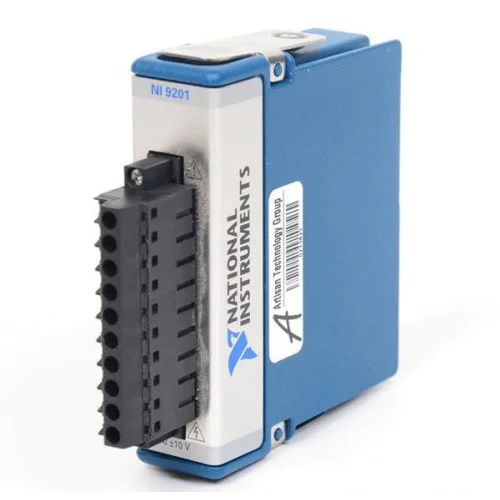

National Instruments NI-9201 C Series Voltage Input Module
1 image: Click to enlarge
National Instruments · CompactDAQ / CompactRIO

NI-9201

The NI-9201 is an eight-channel, single-ended voltage input module for CompactDAQ and CompactRIO systems. It provides a ±10 V input range, 12-bit resolution, and up to 500 kS/s aggregate scanning.

ManufacturerNational Instruments
ModelNI-9201
Product TypeC Series Voltage Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9201

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs8 single-ended channels
Input range±10 V
Resolution12 bits
Scanning rate500 kS/s aggregate; 475 kS/s in R Series expansion chassis
SamplingNon-simultaneous
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9201 adds eight voltage measurement channels to a C Series system. Its aggregate scanning rate is shared across the acquired channels rather than specified per channel.

Screw-terminal, spring-terminal, and DSUB versions exist. Connector selection also affects the channel-to-earth isolation rating, so the physical variant must be established before selecting wiring or applying safety limits.

  • Eight single-ended voltage inputs with no differential input channels.
  • 12-bit successive approximation register ADC.
  • ±100 V channel-to-COM overvoltage protection; measurement range remains ±10 V.
Verified specifications

Technical data

Verified product specifications.

Single-ended analog input channels8 channels
Input range-10 to +10 V
ADC resolution12 bits
Maximum aggregate scanning rate500; 475 in R Series expansion chassis kS/s
Maximum single-channel rate800; 475 in R Series expansion chassis kS/s
Simultaneous samplingNo
Continuous channel-to-earth isolation by variantScrew/spring terminal: 250 V RMS, CAT II; DSUB: 60 V DC, CAT I; no channel-to-channel isolation
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

System platforms

NI-9201

C Series voltage input module

Compatibility

NI identifies the NI-9201 as an analog input module for CompactDAQ and CompactRIO systems.

Confirm the module part number and connector before selecting accessories or applying isolation limits.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9201 Product Page and Variant ComparisonProduct Page · ni.com
Open →
NI-9201 and sbRIO-9201 SpecificationsSpecifications · ni.com
Open →
NI 9201 DatasheetDatasheet · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9205View product →
Related model
NI-9215View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does part number 779372-01 identify the screw-terminal version?

No. NI identifies 779372-01 as DSUB and 779013-01 as screw terminal. This catalog record contains conflicting variant information that requires confirmation.
