National Instruments NI-9221 C Series Voltage Input Module

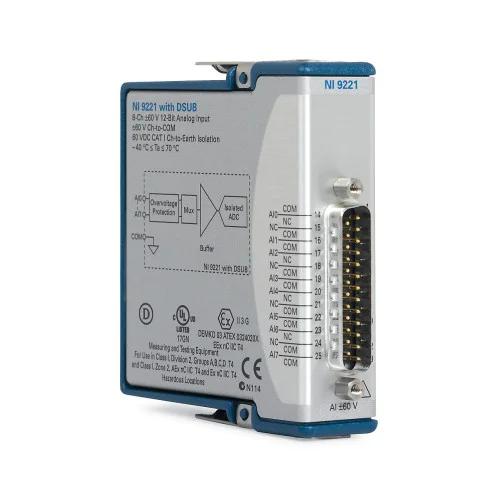

1 image: Click to enlarge

National Instruments · CompactDAQ and CompactRIO

NI-9221

The NI-9221 is an eight-channel, single-ended C Series voltage input module with a ±60 V range and 12-bit resolution. The catalog references part number 779373-01, which NI identifies as the D-SUB version; the legacy screw-terminal description requires clarification.
