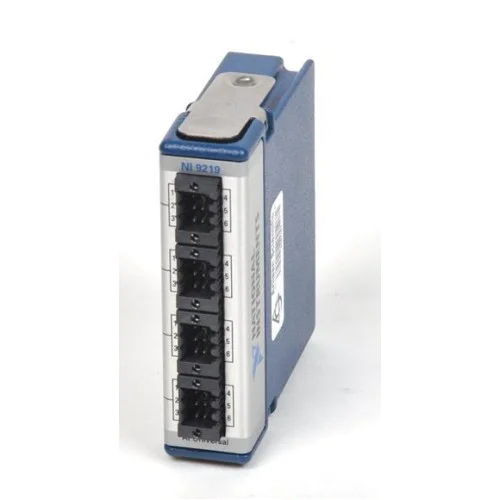

National Instruments NI-9219 C Series Universal Analog Input Module
1 image: Click to enlarge
National Instruments · CompactDAQ and CompactRIO

NI-9219

The NI-9219 is a four-channel universal analog input module for CompactDAQ and CompactRIO. Individually selectable measurement types support mixed-sensor acquisition in one module.

ManufacturerNational Instruments
ModelNI-9219
Part Number779781-02
Product TypeC Series Universal Analog Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9219

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs4 differential channels
Resolution24-bit simultaneous sampling
Maximum sample rate100 S/s/ch; 50 S/s/ch with thermocouple measurements
Sensor supportRTD, thermocouple and bridge
ConnectionsSpring terminals
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for multipurpose testing, the NI-9219 measures signals from strain gauges, RTDs, thermocouples, load cells and powered sensors. Each channel can use a different measurement type.

Internal excitation and measurement-specific signal conditioning support direct sensor connections. Timing modes trade acquisition speed against resolution and power-line noise rejection.

  • Independent measurement-type selection on all four channels.
  • Supports quarter-bridge, half-bridge and full-bridge measurements.
  • Built-in voltage and current excitation for supported sensor modes.
  • Channel-to-channel isolation separates measurement channels.
Verified specifications

Technical data

Verified product specifications.

Differential analog input channels4 channels
ADC resolution24 bits
Maximum sample rate100, mode-dependent S/s/ch
High-speed conversion time with thermocouple channel configured20 ms
Nominal voltage input ranges±60 V, ±15 V, ±4 V, ±1 V, ±125 mV
Current input range±25 mA
Continuous channel-to-channel isolation250 V AC, Measurement Category II; observe installation restrictions
Front connectionSpring terminal
Conformal coating for part number 779781-02Yes
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host platforms

NI-9219

C Series universal analog input module

Wiring

Terminal assignments depend on the selected measurement mode.

Check the connector-specific pinout and safety limits before wiring; isolation voltage is not the signal measurement range.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9219 Product PageProduct Page · ni.com
Open →
NI-9219 and sbRIO-9219 SpecificationsSpecifications · ni.com
Open →
NI-9219 Getting StartedGetting Started Guide · ni.com
Open →
C Series Hardware Compatibility with LabVIEWTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9213View product →
Related model
NI-9205View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can different sensors be measured on different channels?

Yes. Each channel has an individually selectable measurement type.

Does the NI-9219 always acquire at 100 S/s/ch?

No. The rate depends on timing mode and sensor configuration. High-speed conversion takes 10 ms without thermocouple channels and 20 ms when any channel is configured for a thermocouple.

What distinguishes part number 779781-02?

NI identifies 779781-02 as the conformal-coated NI-9219 variant.
