National Instruments NI-9213 C Series Temperature Input Module

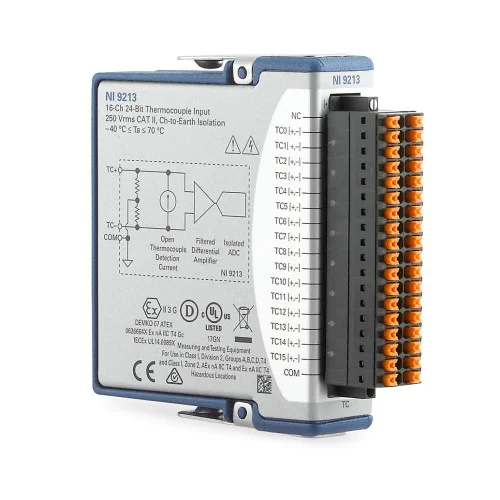

1 image: Click to enlarge

National Instruments · CompactDAQ and CompactRIO

NI-9213

The NI-9213 is a 16-channel C Series thermocouple input module for CompactDAQ and CompactRIO systems. It combines temperature signal conditioning with spring-terminal connections for higher-channel-count measurements.

ManufacturerNational Instruments

ModelNI-9213

Part Number785185-01

Product TypeC Series Temperature Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9213

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Thermocouple inputs16 channels

ADC resolution24-bit

Input range-78.125 to +78.125 mV

Sensor typesJ, K, T, E, N, B, R and S thermocouples

Isolation250 Vrms channel-to-earth

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9213 adds thermocouple measurements to mixed-signal test systems while conserving chassis slots. Its 16 inputs suit systems that need multiple temperature measurement points within the C Series ecosystem.

Each input passes through a differential filter before multiplexing into a 24-bit ADC. The module includes cold-junction compensation, anti-aliasing filters and open-thermocouple detection.

16 thermocouple inputs in one C Series module.
Integrated cold-junction compensation for thermocouple measurements.
Open-thermocouple detection supports identification of disconnected sensors.
50 Hz/60 Hz noise rejection.
Spring-terminal connections for thermocouple wiring.

Verified specifications

Technical data

Verified product specifications.

Differential analog input channels	16 channels
ADC resolution	24 bits
Analog input voltage range	-78.125 to +78.125 mV
Sampling architecture	Multiplexed ADC
Sample rate in cited datasheet	75 aggregate S/s
Channel-to-earth isolation	250 Vrms
Supported thermocouple types	J, K, T, E, N, B, R, S
Front connection	Spring terminal
Operating temperature	-40 to +70 °C
Conformal coating for 785185-01	No

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host system platforms

C Series

Modular I/O family

NI-9213

Thermocouple temperature input module

Confirm the hardware revision and connector type before wiring; NI documentation distinguishes black and black/orange connector versions.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9213 Official Product Page — 785185-01Product Page · ni.com

Open →

NI 9213 DatasheetDatasheet · download.ni.com

Open →

NI-9213 Getting StartedGetting Started Guide · ni.com

Open →

NI-9213 Dimensional DrawingsDrawings And CAD Models · ni.com

Open →

C Series Module and CompactDAQ/CompactRIO Hardware CompatibilityTechnical resource

Open →

Difference Between NI-9213 and NI-9214 Thermocouple ModulesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which thermocouple types does the NI-9213 support?

NI lists J, K, T, E, N, B, R and S types. Do not interpret the legacy phrase 'all standard thermocouples' as support for every thermocouple type; Type C is not listed as a supported selection.

Does the NI-9213 sample every channel simultaneously?

The getting-started guide describes filtered inputs multiplexed into a shared 24-bit ADC, rather than simultaneous conversion of all channels.

How does the NI-9213 differ from the NI-9214?

NI identifies the NI-9214's added terminal block and additional cold-junction compensation as differences that improve measurement accuracy. Compare the specifications for the intended operating conditions rather than treating the models as interchangeable.
