National Instruments NI-9211 Thermocouple temperature input module

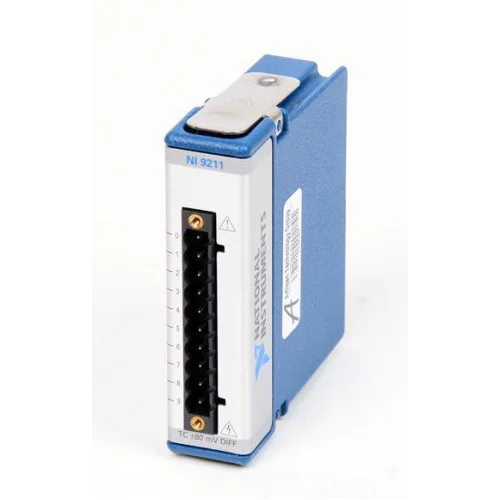

1 image: Click to enlarge

National Instruments · CompactDAQ and CompactRIO

NI-9211

The NI-9211 is a four-channel C Series thermocouple input module for CompactDAQ and CompactRIO chassis. It combines 24-bit conversion and ±80 mV inputs with cold-junction compensation and open-thermocouple detection.

ManufacturerNational Instruments

ModelNI-9211

Part Number779001-01

Product TypeThermocouple temperature input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9211

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Thermocouple inputs4 channels

Resolution24-bit delta-sigma ADC

Input range±80 mV

AcquisitionScanned; 70 ms conversion per channel

Sensor typesJ, K, T, E, N, B, R and S thermocouples

ConnectionsScrew terminals

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9211 provides thermocouple signal acquisition in a modular C Series system. Its four measurement channels are supplemented by internal autozero and cold-junction compensation channels.

Acquisition is scanned rather than simultaneous. NI specifies 70 ms per channel and 420 ms for a complete scan including the internal autozero and cold-junction channels. These timing details matter when planning temperature measurement updates.

Four thermocouple inputs supporting J, K, T, E, N, B, R and S sensor types.
Integrated anti-aliasing filters and cold-junction compensation.
Open-thermocouple detection circuitry on each measurement channel.
Internal autozero channel for compensating offset errors.
250 V RMS continuous channel-to-earth isolation, Measurement Category II; channels are not isolated from one another.

Verified specifications

Technical data

Verified product specifications.

Thermocouple input channels	4 channels
ADC resolution	24 bits
ADC type	Delta-sigma
Voltage measurement range	±80 mV
Maximum aggregate sample rate	14 S/s
Sampling mode	Scanned
Conversion time	70 per channel; 420 total including autozero and cold-junction channels ms
Supported thermocouple types	J, K, T, E, N, B, R, S
Continuous channel-to-earth isolation	250; Measurement Category II V RMS
Channel-to-channel isolation	None
Front connection	Screw terminal
Operating temperature	-40 to 70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host chassis platforms

C Series

Modular I/O family

NI-9211

Four-channel thermocouple input module

Confirm support for the intended chassis and software version before integration. Do not interpret channel-to-earth isolation as channel-to-channel isolation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9211 Product PageProduct Page · ni.com

Open →

NI-9211 and sbRIO-9211 SpecificationsSpecifications · ni.com

Open →

NI-9211 Getting StartedGetting-started Guide · ni.com

Open →

NI 9211 DatasheetDatasheet PDF · download.ni.com

Open →

NI-9211 Dimensional DrawingsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which thermocouple types does the NI-9211 support?

It supports J, K, T, E, N, B, R and S thermocouples over their NIST-defined temperature ranges.

Does the NI-9211 sample all four inputs simultaneously?

No. It uses scanned acquisition, with a conversion time of 70 ms per channel. A scan of all measurement and internal compensation channels takes 420 ms.

Are the thermocouple channels isolated from each other?

No. The channels share a common ground. The specified continuous isolation is 250 V RMS from channel to earth, Measurement Category II.

What affects temperature measurement accuracy?

Thermocouple type, sensor accuracy, measured temperature, wire resistance and cold-junction temperature all affect accuracy. NI recommends minimizing thermal gradients and nearby heat sources at the terminals.
