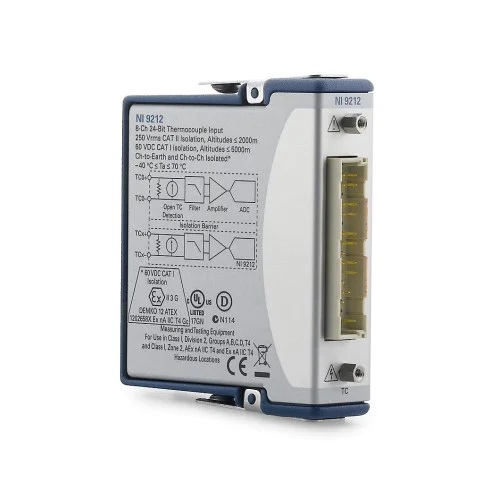

NI (National Instruments) NI-9212 8-Channel, 95 S/s/ch Simultaneous, ±78 mV C Series Temperature Input Module
1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9212

The NI-9212 is an 8-channel C Series temperature input module for standard thermocouples. It provides simultaneous sampling up to 95 S/s/ch, a ±78.125 mV input range, and channel-to-channel isolation.

ManufacturerNI (National Instruments)
ModelNI-9212
Part Number782975-01 · 785259-01
Product Type8-Channel, 95 S/s/ch Simultaneous, ±78 mV C Series Temperature Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9212

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels8
Supported SensorsAll Standard Thermocouples
Maximum Sample Rate95 S/s/ch
Supported Hardware PlatformC Series
Analog Input Channels8
Analog Input Voltage Range-78.125 mV to 78.125 mV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9212 provides eight differential temperature measurement channels for standard thermocouples within the NI C Series platform. Simultaneous sampling captures each channel at up to 95 samples per second per channel.

The module has channel-to-channel isolation rated for continuous voltages up to 250 Vrms and transient withstand voltages up to 1500 Vrms. Its specified operating temperature range is -40 °C to 70 °C.

  • Eight differential analog input channels for thermocouple measurements.
  • Simultaneous sampling at a maximum rate of 95 S/s/ch.
  • Analog input range of -78.125 mV to +78.125 mV.
  • Support for all standard thermocouples.
  • Channel-to-channel isolation for continuous voltages up to 250 Vrms and transient withstand voltages up to 1500 Vrms.
  • Enclosed, non-conformal-coated design with a -40 °C to 70 °C operating temperature range.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels8
Conformal CoatedNo
EnclosedYes
Supported SensorsAll Standard Thermocouples
Maximum Sample Rate95 S/s/ch
Supported Hardware PlatformC Series
Number of Analog Input Channels8
Analog Input Voltage Range-78.125 mV to 78.125 mV
Operating Temperature Range-40 °C to 70 °C
Bus ConnectionC Series
Supported Sensor TypeThermocouple
NI part numbers782975-01, 785259-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9212

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many input channels does the NI-9212 have?

The NI-9212 has eight differential analog input channels.

Which sensors does the NI-9212 support?

The NI-9212 supports all standard thermocouples.

What is the maximum NI-9212 sample rate?

The maximum sample rate is 95 S/s/ch, with simultaneous sampling across the eight channels.

What is the NI-9212 operating temperature range?

The module's operating temperature range is -40 °C to 70 °C. This is the module operating environment range, not the thermocouple measurement range.
