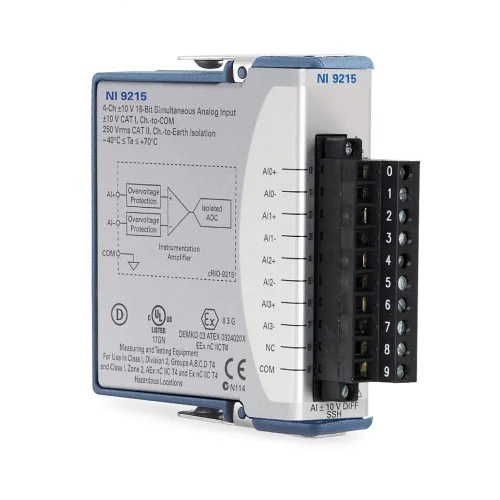

The NI-9215 is a four-channel differential voltage input module with a ±10 V input range, 16-bit resolution and simultaneous sampling up to 100 kS/s per channel.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The NI-9215 provides voltage acquisition in NI CompactDAQ and CompactRIO systems. Independent track-and-hold circuitry lets all four channels sample simultaneously, rather than scanning inputs sequentially.
NI offers screw-terminal, spring-terminal and BNC versions. Connector-specific wiring and isolation limits differ, so the physical variant must be identified before applying those specifications to this catalog item.
Verified product specifications.
| Differential analog input channels | 4 channels |
|---|---|
| Nominal analog input range | -10 to +10 V |
| Maximum sample rate per channel | 100 kS/s/ch |
| ADC resolution | 16 bits |
| Simultaneous sampling | Yes |
| Channel-to-channel isolation | None |
| Operating temperature | -40 to +70 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host system platforms
C Series differential voltage input module
779011-01: screw terminal; 783739-01: spring terminal; 779138-01: BNC. These are model-family references, not confirmed identifiers for this item.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. Each channel has independent track-and-hold circuitry, supporting simultaneous sampling at up to 100 kS/s per channel.
No. The nominal measurement range is ±10 V. Screw- and spring-terminal versions have 250 Vrms continuous channel-to-earth isolation, while the BNC version has 60 VDC. There is no channel-to-channel isolation.
The record is inconsistent: its description says screw terminal, but its tag lists 783739-01, which NI identifies as spring terminal. Confirm the physical connector and module label before selecting wiring accessories.
