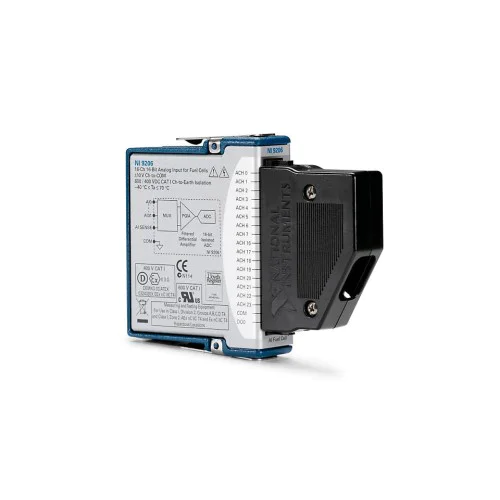

NI-9206

The NI-9206 is a C Series voltage input module with 32 single-ended or 16 differential inputs, 16-bit conversion, and four programmable voltage ranges.

ManufacturerNational Instruments

ModelNI-9206

Part Number779526-01

Product TypeC Series Voltage Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9206

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Input channels32 single-ended or 16 differential

Resolution16-bit

Maximum sampling rate250 kS/s aggregate

Input ranges±200 mV, ±1 V, ±5 V, ±10 V

ConnectionSpring terminal

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for CompactDAQ and CompactRIO systems, the NI-9206 multiplexes its inputs through a shared amplifier and ADC. Its 250 kS/s rating is aggregate, not a simultaneous per-channel rate.

NI identifies fuel-cell and battery-stack monitoring as applications for this module. Channel-to-earth isolation is up to 600 VDC in the U.S. and 400 VDC in Europe; this does not extend the ±10 V nominal measurement range.

Four per-channel programmable input ranges.
Single-ended and differential analog input configurations.
Channel-to-earth isolation for elevated common-mode measurements.
Enclosed module with spring-terminal signal connections.

Verified specifications

Technical data

Verified product specifications.

Maximum single-ended inputs	32 channels
Maximum differential inputs	16 channels
ADC resolution	16 bits
Maximum aggregate sampling rate	250; CompactDAQ and CompactRIO chassis kS/s
Nominal input ranges	±0.2, ±1, ±5, ±10 V
Simultaneous sampling	No
Continuous channel-to-earth isolation	600 (U.S.); 400 (Europe); Measurement Category I VDC
Channel-to-channel isolation	None
Front connection	Spring terminal
Operating temperature	-40 to 70 °C
Enclosed	Yes
Conformal coating	No
