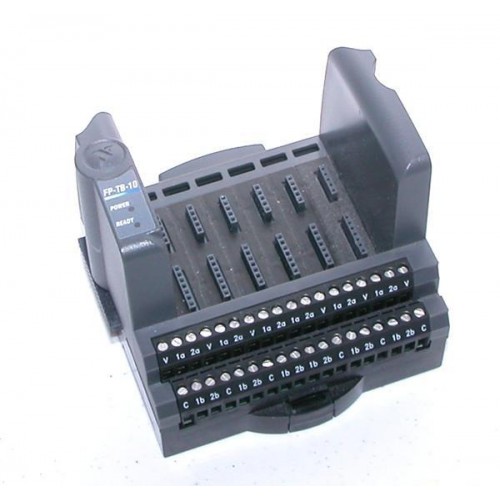

National Instruments FP-TB-10 Terminal base

1 image: Click to enlarge

National Instruments · FieldPoint

FP-TB-10

Name: FP-TB-10
Brand: National Instruments

The FP-TB-10 accommodates up to six dual-channel FieldPoint I/O modules.

ManufacturerNational Instruments

ModelFP-TB-10

Product TypeTerminal base

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-TB-10

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

CapacitySix dual-channel modules

Mounting35 mm DIN rail; panel mounting with accessory

PowerLocal backplane bus

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Different dual-channel I/O types can share one base. The FieldPoint bank can also contain standard eight- and 16-channel modules.

Mixed I/O module configurations.
Four signal screw terminals per module position.
Six V/C terminal pairs for external power distribution.

Verified specifications

Technical data

Verified product specifications.

Module positions	6
Base-only power consumption	0.15 W
Scan contribution per analog module	1.5 ms
Scan contribution per digital module or empty position	0.2 ms

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-TB-10

Dual-channel module terminal base

Compatibility

Supports FP-AI-C420, FP-AI-V10B, FP-AO-V5B, FP-TC-J and FP-TC-K modules.

Power off the network module before connecting the base. Include installed modules in the power budget.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the base determine the measurement range?

Measurement ranges depend on the installed I/O modules.

Can modules be exchanged during operation?

Same-type replacement supports live swapping. A different module type resets the base and all six positions.
