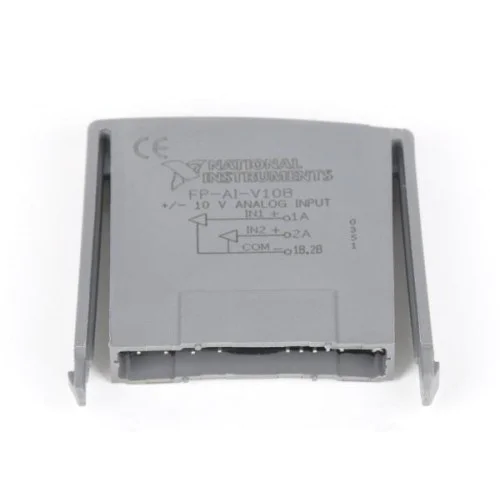

The NI FP-AI-V10B is a dual-channel ±10 V analog voltage input module for the FieldPoint FP-TB-10 terminal base.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The two inputs share a common reference. Field wiring connects through the FP-TB-10 screw terminals.
Verified product specifications.
| Input channels | 2 single-ended |
|---|---|
| Input range | ±10 V |
| Measurement resolution | 12 bits |
| Voltage resolution | 4.88 mV |
| Programmable measurement bandwidth | 20 Hz or 2 kHz |
| Input impedance | 2.2 MΩ |
| Input protection | ±30 V |
| Power requirement | 375 mW |
| Operating temperature | −20 to +70 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Terminal base
Voltage input module
Installs in the FP-TB-10 terminal base.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The FP-AI-V10B measures ±10 V; the FP-AI-V10 measures 0 to 10 V.
No. FP-TB-10 scan timing depends on installed modules; network throughput is independent.
