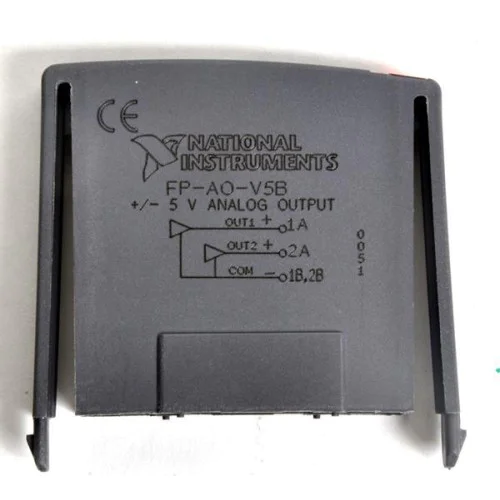

National Instruments FP-AO-V5B Analog voltage output module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-AO-V5B

Name: FP-AO-V5B
Brand: National Instruments

The NI FP-AO-V5B provides two single-ended ±5 V analog outputs with 12-bit resolution.

ManufacturerNational Instruments

ModelFP-AO-V5B

Product TypeAnalog voltage output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-AO-V5B

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2

Output range±5 V

Resolution12-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This dual-channel module mounts on the FP-TB-10 terminal base within a FieldPoint system.

Bipolar voltage outputs.
10 mA output drive per channel.
Channels share a common reference.

Verified specifications

Technical data

Verified product specifications.

Output channels	2 single-ended
Output range	±5 V
Output resolution	12 bit
Voltage resolution	2.4 mV
Output impedance	10 Ω
Output drive	10 mA
Operating temperature	-20 to +70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Platform

FP-TB-10

Terminal base

FP-AO-V5B

Voltage output

The two channels are not independently isolated.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does FP-AO-V5B output ±10 V?

No. Its range is ±5 V; FP-AO-V10B provides ±10 V.
