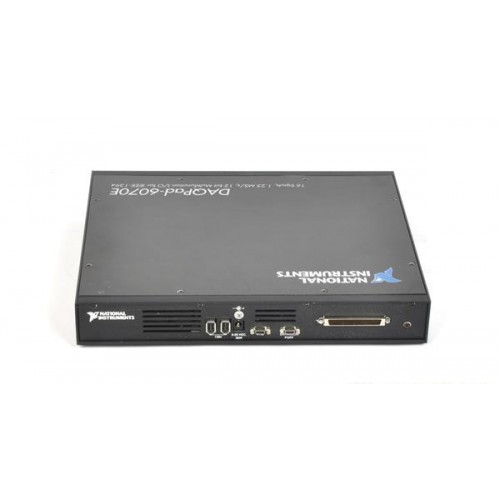

National Instruments DAQPAD-6070E Multifunction data acquisition device
1 image: Click to enlarge
National Instruments · DAQPad

DAQPAD-6070E

The National Instruments DAQPAD-6070E is an IEEE 1394 E Series data acquisition device rated at 12-bit resolution and a maximum sampling rate of 1.25 MS/s. It uses Traditional NI-DAQ (Legacy), rather than NI-DAQmx.

ManufacturerNational Instruments
ModelDAQPAD-6070E
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQPAD-6070E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Acquisition12-bit, up to 1.25 MS/s
Host interfaceIEEE 1394
Driver familyTraditional NI-DAQ (Legacy)
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The DAQPAD-6070E combines analog acquisition, voltage output and digital I/O in an external DAQPad unit. NI includes it in the 6070E/6071E specifications family.

Software selection is important when integrating this model into an existing system: NI explicitly lists the DAQPad-6070E among devices restricted to Traditional NI-DAQ (Legacy). Do not assume NI-DAQmx support.

  • Software-selectable single-ended or differential analog inputs.
  • Two 12-bit voltage outputs.
  • Eight 5 V/TTL digital I/O lines.
  • IEEE 1394 host connection.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution12 bit
Maximum sampling rate1.25 MS/s
Analog output channels2 voltage outputs
Analog output resolution12 bit
Digital I/O8 input/output lines; 5 V/TTL
Analog input FIFO2048 samples
Dimensions excluding connectors30.7 × 25.4 × 4.3 cm
Weight1955 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

IEEE 1394 DAQPad

Host interface and device platform

DAQPAD-6070E

E Series acquisition device

Software ecosystem

Traditional NI-DAQ (Legacy); NI-DAQmx is not supported.

Confirm host IEEE 1394 hardware, operating system and Traditional NI-DAQ version before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6070E/6071E Family SpecificationsSpecifications · download.ni.com
Open →
NI-DAQ 7.4 ReadmeDriver Support Reference · download.ni.com
Open →
NI-DAQ 6.9.3 Readme: DAQPad-6070E/DAQPad-6052E IEEE 1394 NotesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
DAQPAD-6052EView product →
Related model
DAQPAD-6020EView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the DAQPAD-6070E support NI-DAQmx?

No. NI lists this model as supported only by Traditional NI-DAQ (Legacy).

Which host interface does the DAQPAD-6070E use?

It uses IEEE 1394. NI's driver documentation includes model-specific notes about IEEE 1394 adapter behavior.
