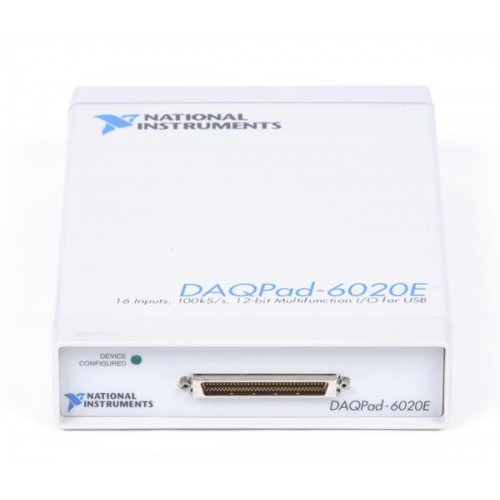

National Instruments DAQPAD-6020E product image 1

National Instruments DAQPAD-6020E product image 1 additional view

5 images: additional views below.Click to enlarge

National Instruments · DAQPad

DAQPAD-6020E

The National Instruments DAQPad-6020E is a USB E Series multifunction DAQ device with 12-bit analog input at up to 100 kS/s. It uses Traditional NI-DAQ (Legacy), rather than NI-DAQmx.

ManufacturerNational Instruments

ModelDAQPAD-6020E

Product TypeMultifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQPAD-6020E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfaceUSB

Analog inputs16 single-ended or 8 differential

ADC12-bit; maximum 100 kS/s

Digital I/O8 lines, 5 V TTL

Counter/timersTwo 24-bit up/down counters

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This external DAQPad belongs to NI's E Series. Its analog, digital and timing functions share one device.

Software planning is important: NI's archived support table lists Traditional NI-DAQ 7.4.4 for Windows XP and Windows 2000. Do not assume support for contemporary operating systems or NI-DAQmx applications.

Software-selectable single-ended or differential input configuration.
Two analog output channels.
Digital I/O and counter/timer functions alongside analog acquisition.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	16 single-ended or 8 differential, software-selectable
Analog input resolution	12 bit
Maximum analog input sampling rate	100 kS/s
Analog output channels	2 channels
Digital I/O	8 input/output lines; 5 V TTL
Counter/timers	2 up/down counters, 24-bit resolution

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB DAQPad

External DAQ platform and host interface

DAQPad-6020E

E Series multifunction DAQ device

Driver family

Traditional NI-DAQ (Legacy); not supported by NI-DAQmx.

Confirm the enclosure and terminal variant before selecting wiring accessories.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI DAQPad-6020E Family SpecificationsSpecifications · docs-be.ni.com

Open →

Archived: Traditional NI-DAQ and DAQmx Driver Support: Legacy Portable DevicesDriver Compatibility Reference · ni.com

Open →

NI-DAQ 6.9.2 Readme: DAQPad-6020E timing and transfer notesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the DAQPad-6020E work with NI-DAQmx?

No. NI lists this model among devices restricted to Traditional NI-DAQ (Legacy). Its archived support table lists version 7.4.4 for Windows XP and Windows 2000.

Does this record identify the BNC version?

No. NI documents half-size, full-size and BNC versions. The supplied record does not establish which version is represented.
