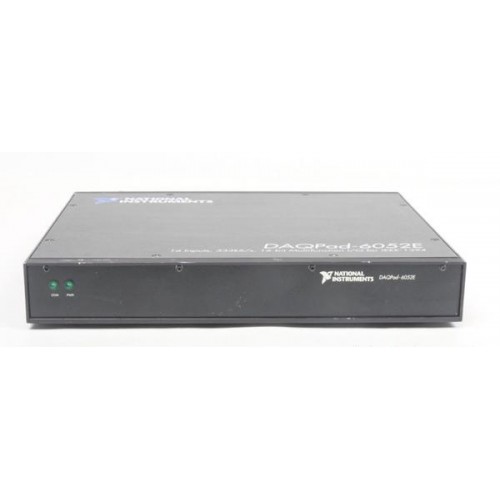

The National Instruments DAQPad-6052E is a 16-bit, 333 kS/s E Series external data acquisition device with IEEE 1394 connectivity.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The DAQPad-6052E belongs to NI's E Series and connects externally through IEEE 1394. NI identifies it as a 333 kS/s, 16-bit device.
Software planning is important: NI's NI-DAQmx 8.1 readme lists this model under devices restricted to Traditional NI-DAQ (Legacy), not NI-DAQmx.
Verified product specifications.
| Analog input channels | 16 single-ended or 8 differential |
|---|---|
| Analog input resolution | 16 bit |
| Maximum sampling rate | 333 kS/s |
| Digital I/O | 8 bidirectional channels; 5 V TTL/CMOS |
| Counter/timers | 2 up/down counters, 24-bit |
| Power requirement | 9–24 VDC; 20 W |
| Dimensions excluding connectors | 30.7 × 25.4 × 4.3 cm |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
E Series acquisition device
Traditional NI-DAQ (Legacy); not supported by NI-DAQmx according to NI's 8.1 readme.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies the DAQPad-6052E as an IEEE 1394 device.
NI's NI-DAQmx 8.1 readme explicitly lists the DAQPad-6052E as supported only by Traditional NI-DAQ (Legacy). Verify the intended operating system and driver release separately.
The record does not identify a connector variant. NI documents either a 68-pin male SCSI-II-type connector or 15 BNC connectors with 30 removable screw terminals.
