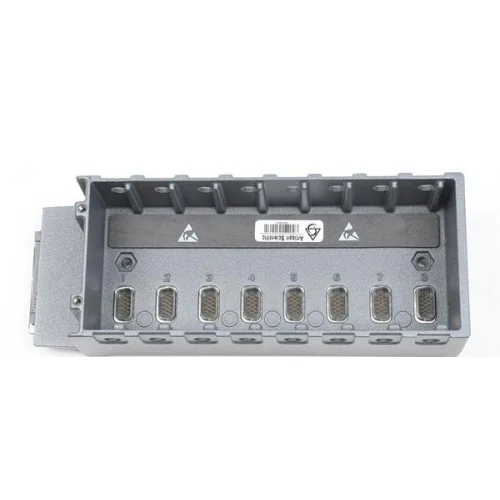

National Instruments cRIO-9104 Reconfigurable embedded FPGA chassis

1 image: Click to enlarge

National Instruments · CompactRIO

CRIO-9104

The NI cRIO-9104 is an eight-slot CompactRIO chassis with a 3M-gate FPGA for C Series I/O. It requires a compatible separate CompactRIO controller.

ManufacturerNational Instruments

ModelcRIO-9104

Part Number779054-01 · 779054-02

Product TypeReconfigurable embedded FPGA chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9104

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformCompactRIO

I/O slots8

FPGA capacity3M gates

System requirementSeparate compatible CompactRIO controller

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cRIO-9104 provides the FPGA chassis portion of a modular CompactRIO system for distributed control and monitoring. Its onboard FPGA supports inline processing and high-speed I/O control.

Controller and I/O module specifications are separate from chassis specifications. Consult the documentation for every component when evaluating a complete system.

Eight C Series I/O module positions.
User-programmable onboard FPGA.
Panel or 35 mm DIN rail mounting.

Verified specifications

Technical data

Verified product specifications.

Slot count	8 slots
FPGA gate capacity	3 million gates
FPGA logic slices	14,336 slices
Timebase frequencies	40, 80, 120, 160 or 200 MHz
Timebase accuracy	±100 maximum ppm
Operating temperature	-40 to 70; application-dependent derating applies °C
Storage temperature	-40 to 85 °C
Chassis weight	Approximately 790 g
Ingress protection	IP40

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Modular embedded platform

cRIO-9104

FPGA chassis

Controller

A compatible separate controller is required.

Confirm controller, module and software compatibility before configuring the system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9104 Product PageProduct Page · ni.com

NI cRIO-9101/9102/9103/9104 User Manual and SpecificationsManual And Specifications · docs-be.ni.com

cRIO-9104 Product CertificationsCertification Resource · ni.com

CompactRIO Mounting Accessory Compatibility GuideTechnical resource

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Explore equipment

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9104 a controller or an I/O module?

It is an FPGA chassis, not a standalone controller or individual I/O module.

Which mounting accessories does NI list for the cRIO-9104?

NI lists the NI 9905 panel mounting kit, part number 779558-01, and the cRIO-9915 DIN rail mounting kit, part number 779018-01.

What installation clearance should be allowed?

Allow 25.4 mm above and below for airflow. Common module connectors require 50.8 mm front cabling clearance; other connectors can differ.
