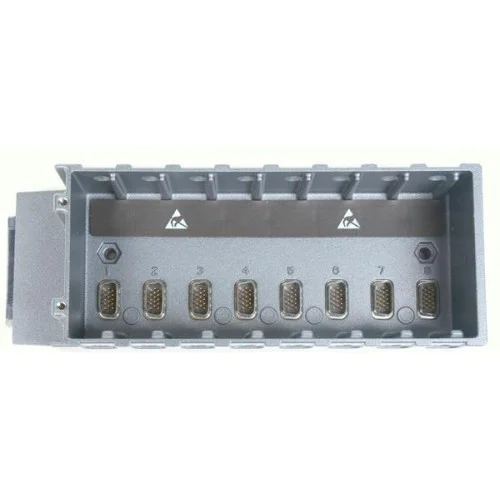

National Instruments cRIO-9102 Reconfigurable embedded chassis
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9102

The NI cRIO-9102 is an eight-slot CompactRIO chassis with a 1M-gate FPGA for C Series I/O. It requires a compatible CompactRIO controller rather than operating as a standalone controller.

ManufacturerNational Instruments
ModelcRIO-9102
Part Number779007-01
Product TypeReconfigurable embedded chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9102

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompactRIO
I/O slots8
FPGA capacity1M gates
NI part number779007-01
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9102 provides the FPGA chassis portion of a modular CompactRIO system. C Series modules supply the application-specific I/O, while a compatible controller communicates with the installed modules.

Software version selection matters for this legacy platform: NI CompactRIO Device Drivers May 2019 ended support for the cRIO-9102. Check hardware and software support before changing an existing development environment.

  • Eight slots for C Series I/O modules.
  • Onboard FPGA for inline processing and high-speed I/O control.
  • Panel mounting or 35 mm DIN rail mounting with appropriate hardware.
Verified specifications

Technical data

Verified product specifications.

Slot count8 slots
FPGA gate capacity1 million gates
FPGA logic slices5120 slices
Chassis power consumption2300 maximum; excludes controller and I/O modules; specified for a LabVIEW FPGA application compiled at 40 MHz mW
WeightApproximately 790 g
Operating temperature-40 to 70; application-dependent derating applies °C
Ingress protectionIP40
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Modular embedded platform

cRIO-9102

Eight-slot FPGA chassis

Controller

Requires a compatible CompactRIO controller.

Verify controller, module, and software support for the intended system before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9102 Product PageProduct Page · ni.com
Open →
NI cRIO-9101/9102/9103/9104 User Manual and SpecificationsUser Manual And Specifications · docs-be.ni.com
Open →
cRIO-9102 Dimensional DrawingsDimensional Drawings And CAD · ni.com
Open →
NI CompactRIO Device Drivers May 2019 ReadmeTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CRIO-9101View product →
Related model
CRIO-9104View product →
Related model
CRIO-9103View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9102 a standalone real-time controller?

No. It is an FPGA chassis that requires a compatible CompactRIO controller.

Does the cRIO-9102 support the NI-9881 CANopen module?

No. NI explicitly identifies the NI-9881 as unsupported in cRIO-910x chassis.

Where can I find mechanical integration files?

NI provides a cRIO-9102 dimensional drawings page with 2D drawings and 3D CAD models for part number 779007-01.
