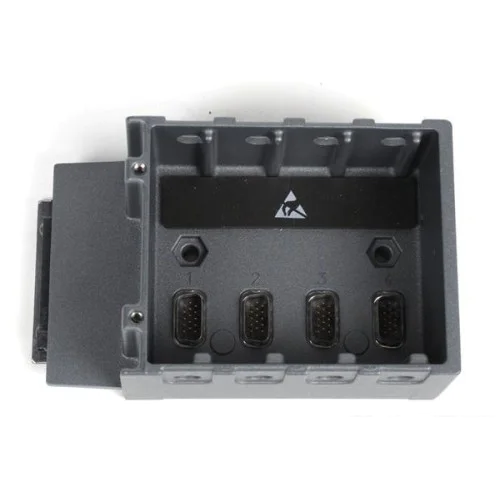

National Instruments cRIO-9101 Reconfigurable embedded FPGA chassis
1 image: Click to enlarge
National Instruments · CompactRIO

CRIO-9101

The NI cRIO-9101 is a four-slot CompactRIO chassis with a 1M-gate FPGA for C Series I/O. It requires a compatible CompactRIO controller to communicate with installed modules.

ManufacturerNational Instruments
ModelcRIO-9101
Part Number779052-01
Product TypeReconfigurable embedded FPGA chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9101

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompactRIO
I/O slots4
FPGA capacity1M gates
Part number779052-01
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9101 provides the reconfigurable FPGA chassis portion of a modular CompactRIO system. Its four slots accept C Series I/O modules for distributed monitoring and control.

A system also requires a separate real-time controller, suitable I/O modules, and power supply. Controller and module specifications must be checked separately.

  • Four C Series I/O slots.
  • Onboard 1M-gate FPGA for programmable I/O processing and control.
  • Panel mounting or 35 mm DIN rail mounting with appropriate hardware.
Verified specifications

Technical data

Verified product specifications.

I/O slot count4 slots
FPGA capacity1 million gates
FPGA logic slices5120 slices
FPGA embedded RAM81920 bytes
Approximate chassis weight490 g
Operating temperature-40 to 70; application-dependent derating applies °C
Ingress protectionIP40
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Modular embedded control platform

cRIO-9101

Four-slot FPGA chassis

System components

Separate controller, chassis, and C Series I/O modules.

Confirm controller, module, and software support for the intended system before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9101 Product PageProduct Page · ni.com
Open →
NI cRIO-9101/9102/9103/9104 User Manual and SpecificationsManual · docs-be.ni.com
Open →
NI Software Support for cRIO Devices and R Series DevicesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
CRIO-9102View product →
Related model
CRIO-9103View product →
Related model
CRIO-9104View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the cRIO-9101 an I/O module or a controller?

It is a CompactRIO FPGA chassis, not an individual I/O module or standalone controller. A compatible controller is required.

How many I/O slots does it provide?

The cRIO-9101 provides four C Series I/O slots.
