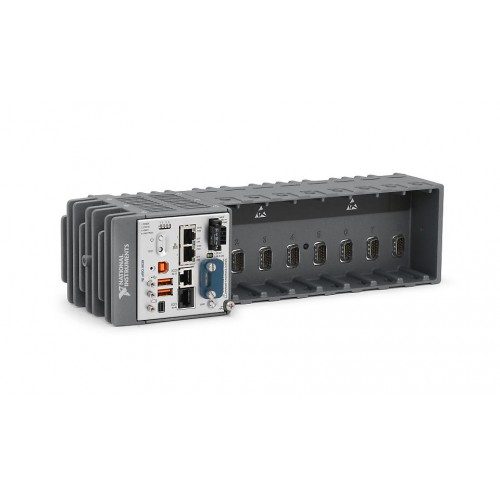

National Instruments cRIO-9039 8-slot embedded real-time controller
1 image: Click to enlarge
National Instruments · CompactRIO

cRIO-9039

The NI cRIO-9039 is a fanless, 8-slot CompactRIO controller combining a 1.91 GHz quad-core processor, Kintex-7 325T FPGA, 2 GB RAM, and 16 GB storage for embedded control and monitoring.

ManufacturerNational Instruments
ModelcRIO-9039
Part Number783851-01 · 784775-01
Product Type8-slot embedded real-time controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9039

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Platform8-slot CompactRIO
Processor1.91 GHz quad-core Intel Atom
FPGAKintex-7 325T
Memory and storage2 GB RAM; 16 GB storage
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9039 integrates real-time processing and a programmable FPGA in a rugged embedded controller. It runs NI Linux Real-Time and supports an embedded user interface.

NI lists both standard and synchronization-enabled part numbers under this model. Confirm the controller's part number before selecting synchronization-dependent software or system functions.

  • Fanless embedded construction.
  • Mini DisplayPort supports a local human-machine interface.
  • Two Gigabit Ethernet ports, two USB host ports, and one USB device port.
Verified specifications

Technical data

Verified product specifications.

CPUIntel Atom E3845, quad-core
CPU frequency1.91 GHz
Operating systemNI Linux Real-Time, 64-bit
Processor RAM2 GB DDR3L
Solid-state storage16 GB
FPGAXilinx Kintex-7 7K325T
Removable storageSD/SDHC, up to 32 GB; user supplied
Power input9–30 V DC at V1 and V2
Maximum power consumption46 W under NI's specified fully populated, high-stress conditions
Operating temperature-20 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9039

8-slot controller

783851-01

Standard cRIO-9039

Confirm standard versus Sync hardware before choosing a software configuration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9039 Product PageProduct Page · ni.com
Open →
cRIO-9039 SpecificationsSpecifications · ni.com
Open →
NI cRIO-9039 Specifications PDFTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
cRIO-9037View product →
Related model
cRIO-9034View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is LabVIEW FPGA Module required?

It is required to program the user-accessible FPGA, but not when using Scan Interface mode.

Are all cRIO-9039 part numbers synchronization-enabled?

No. NI identifies 784775-01 as synchronization-enabled and lists 783851-01 separately without that designation.
